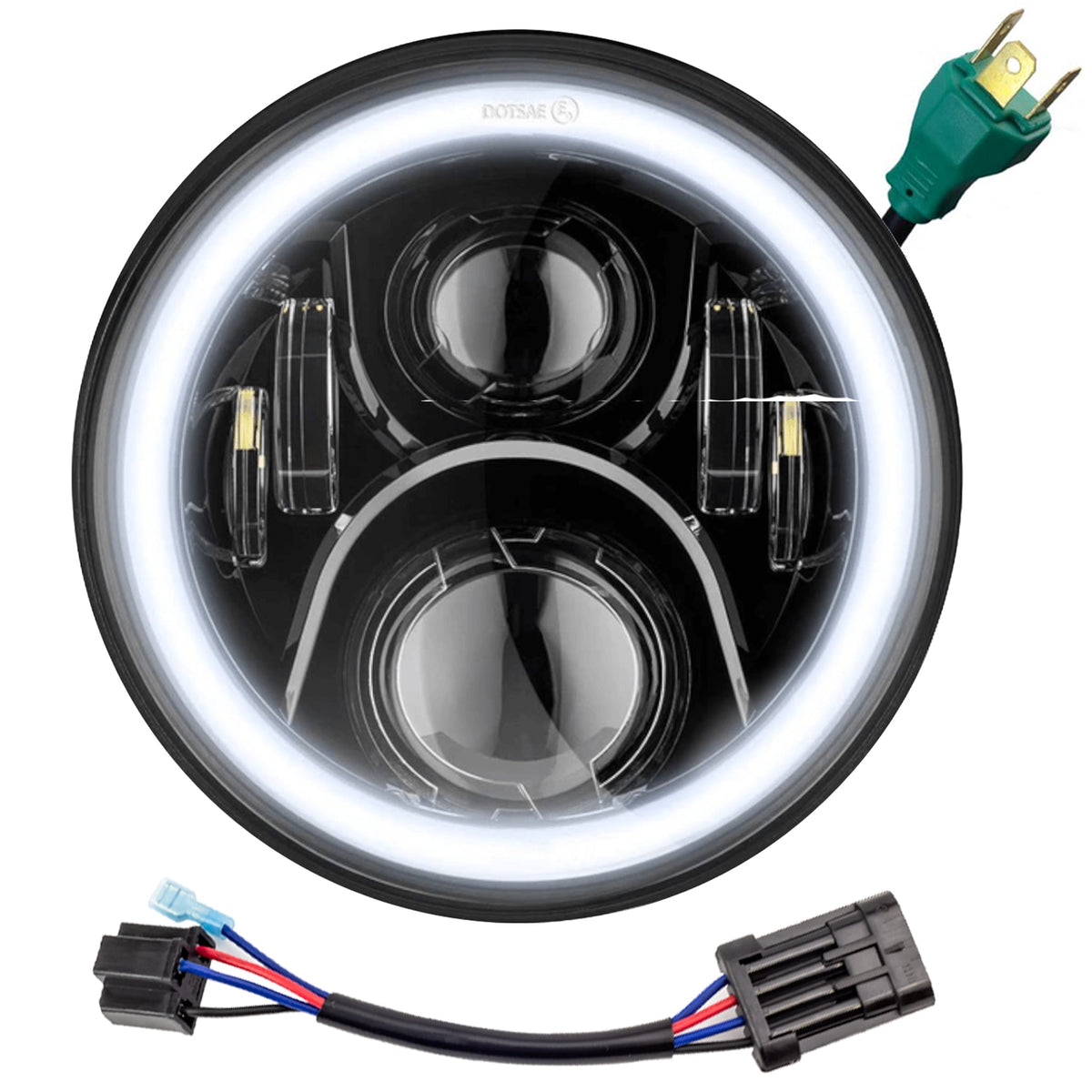

The 8700BG3 is the newest and brightest 7" LED headlight available. It outputs 33% more light than the Generation II with a wider beam pattern. It comes with a clean black finish to complement your bike. Easy plug and play installation with a industry standard H4.

EAGLE LIGHTS QUALITY - The best Eagle Lights 7" LED headlight. The Eagle Lights Gen III headlight uses high quality polycarbonate lens construction for extra durability and heat treated die-cast aluminum for the body. Powered by high output LEDs, it is the best and the brightest 7" LED Headlight available.

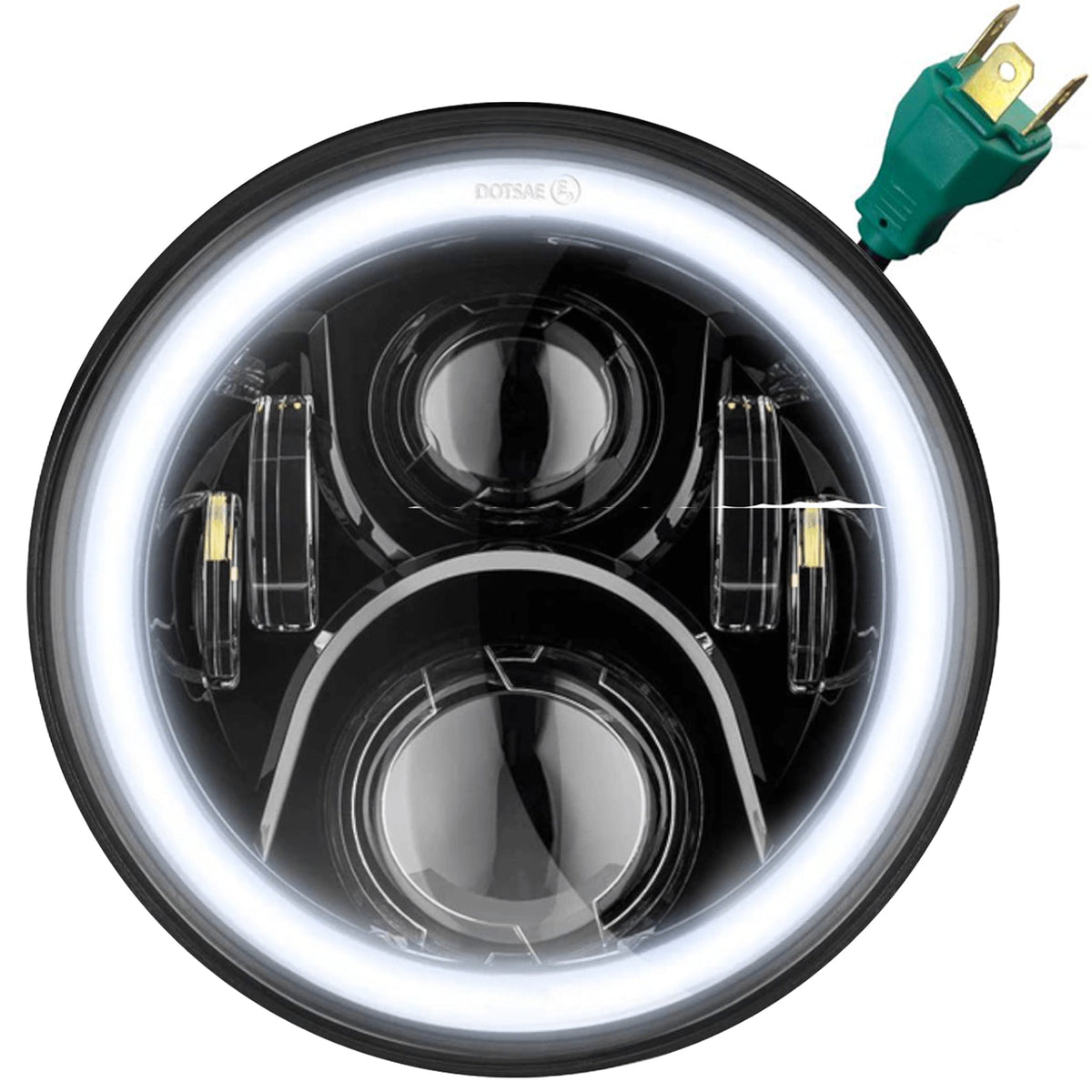

FULL HALO RING - Plug and Play halo ring. Comes on during low beam and turns off during high beam. Awesome look to complete your bike.
PLUG N' PLAY - Ready to use out of the box! No splicing, no wiring, no capacitors, just ready to use. We build everything needed inside the headlight so you don't have to wire it. Comes with the standard H4 connection and does high and low beam, all in one headlight.
GENERATION III DIFFERENCE - 33% more light, wider field of light. Same master-crafted construction from the Generation II. Fits all 7" buckets with no wiring adapters or adapter rings.
LOTS OF POWER, LOTS OF LIGHT - At over 3800 Lumens, there is nowhere you can't go. With a wide angle of projection and a color temperature just north of 6000K, the road will be bright, easily visible and safe.
EAGLE LIGHTS LIFETIME WARRANTY - Our LED headlights are designed to outlast your bike! But should something go wrong, you are covered by the Eagle Lights Lifetime Manufacturer Warranty. The best warranty in the business! No hassle returns and no hassle warranty replacement.

8700G3 Technical Specifications:

Description 12-24V DOT LED High & Low Beam Headlight with Black Inner Bezel
Height 176.53 (mm) / 6.95 (in)
Width 176.53 (mm) / 6.95 (in)
Depth 99.82 (mm) / 3.93 (in)
Shape Round
Outer Lens Material Polycarbonate Outer Lens
Color Clear
Housing Material Die-Cast Aluminum Housing
Bezel Color Black / Chrome
Retrofits 2D1 "PAR56" or 7" Round Headlights
Minimum Operating Temperature -40 (°C) / -40 (°F)
Maximum Operating Temperature 65 (°C) / 149 (°F)
Product Weight 2.5 (lbs)
Lumen Output: 3315 LM (High Beam), 2170 LM (Low Beam) (Halo ring not included)

Installation Accessories Guide:

Product Wiring Harness Note:

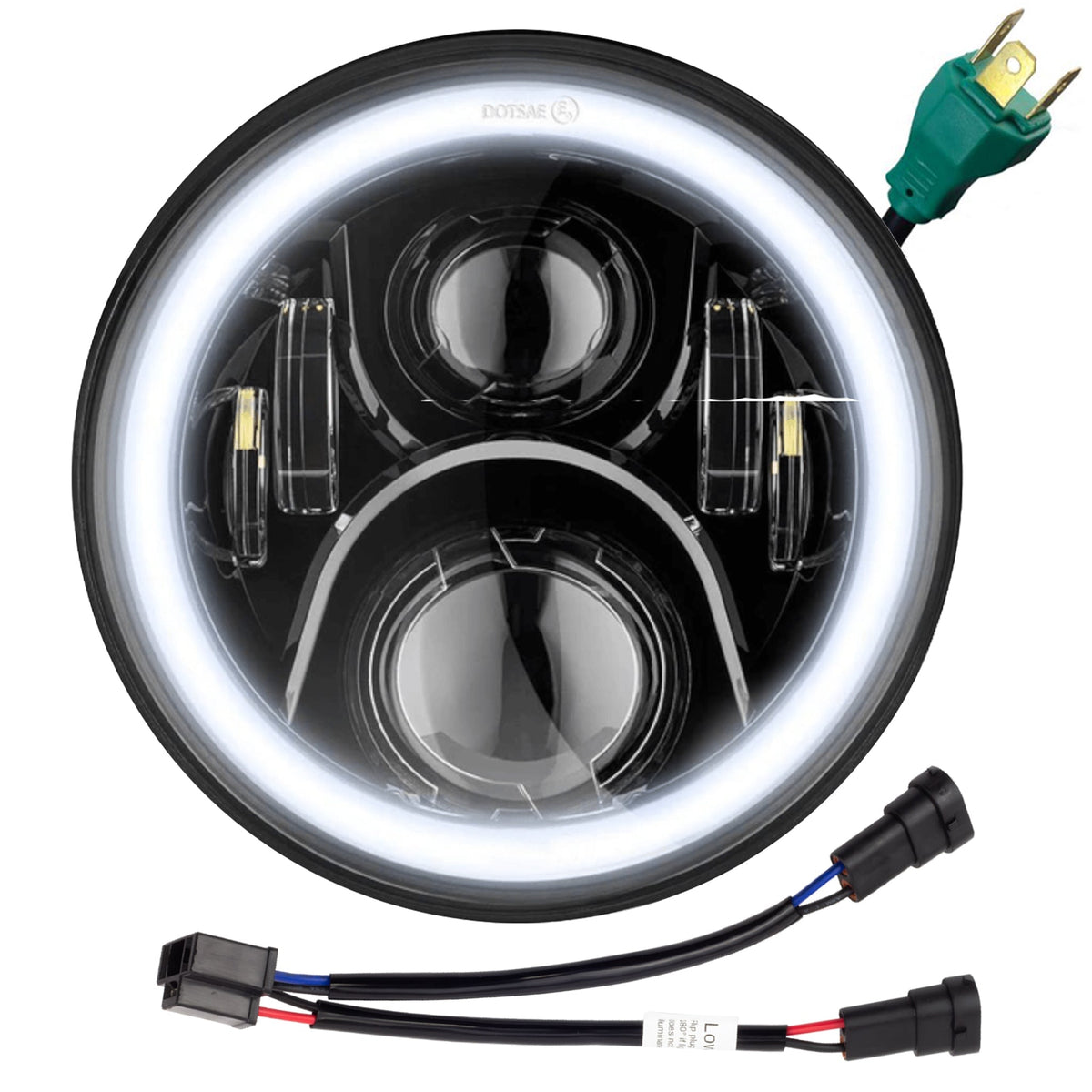

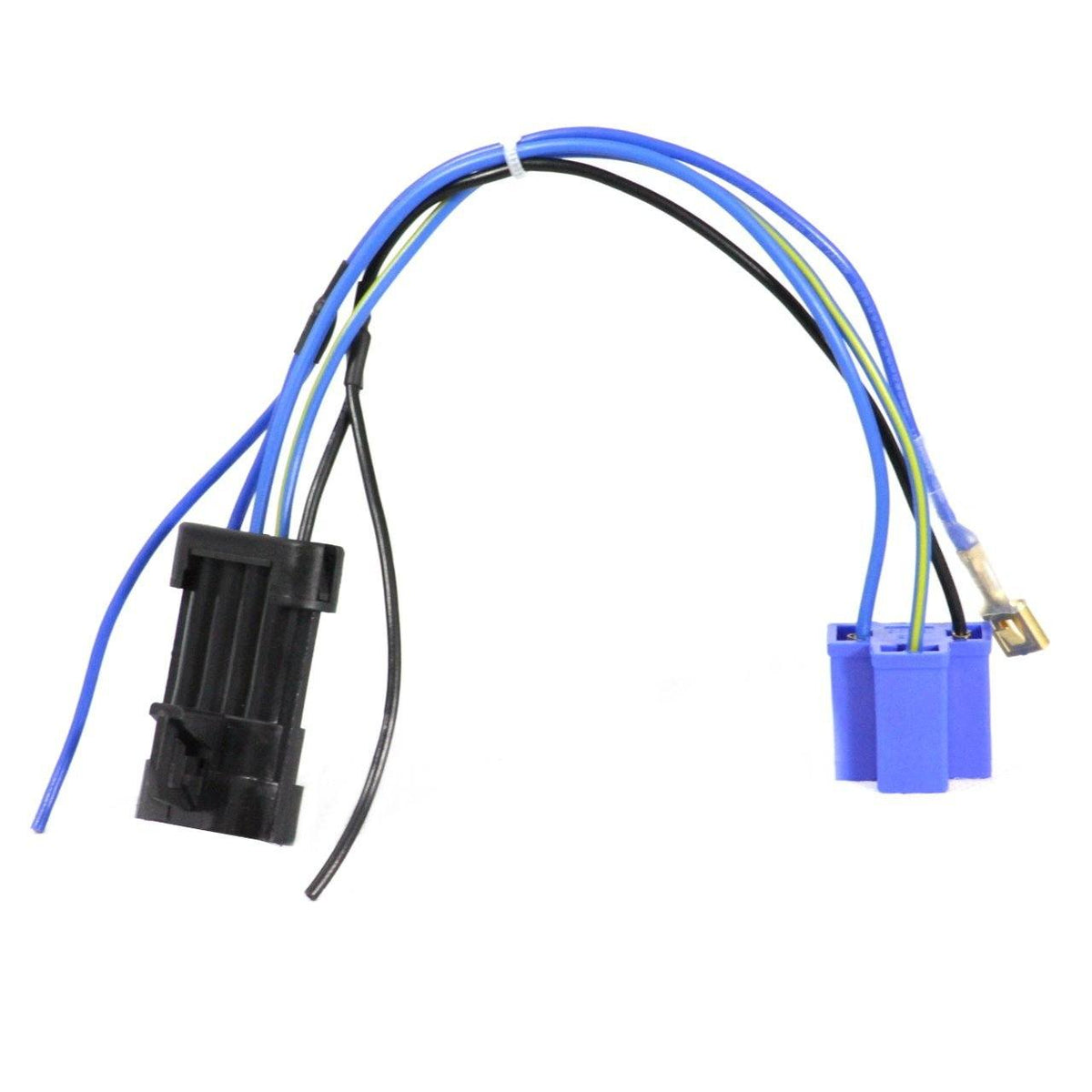

If your bike is 2014 and newer, you will need one of two adapter harnesses. If your headlight has one bulb in the main housing, you will need part number 69200897. If your headlight has two bulbs in the main housing, you will need part number 69200899.

Adapter Ring Product Note:

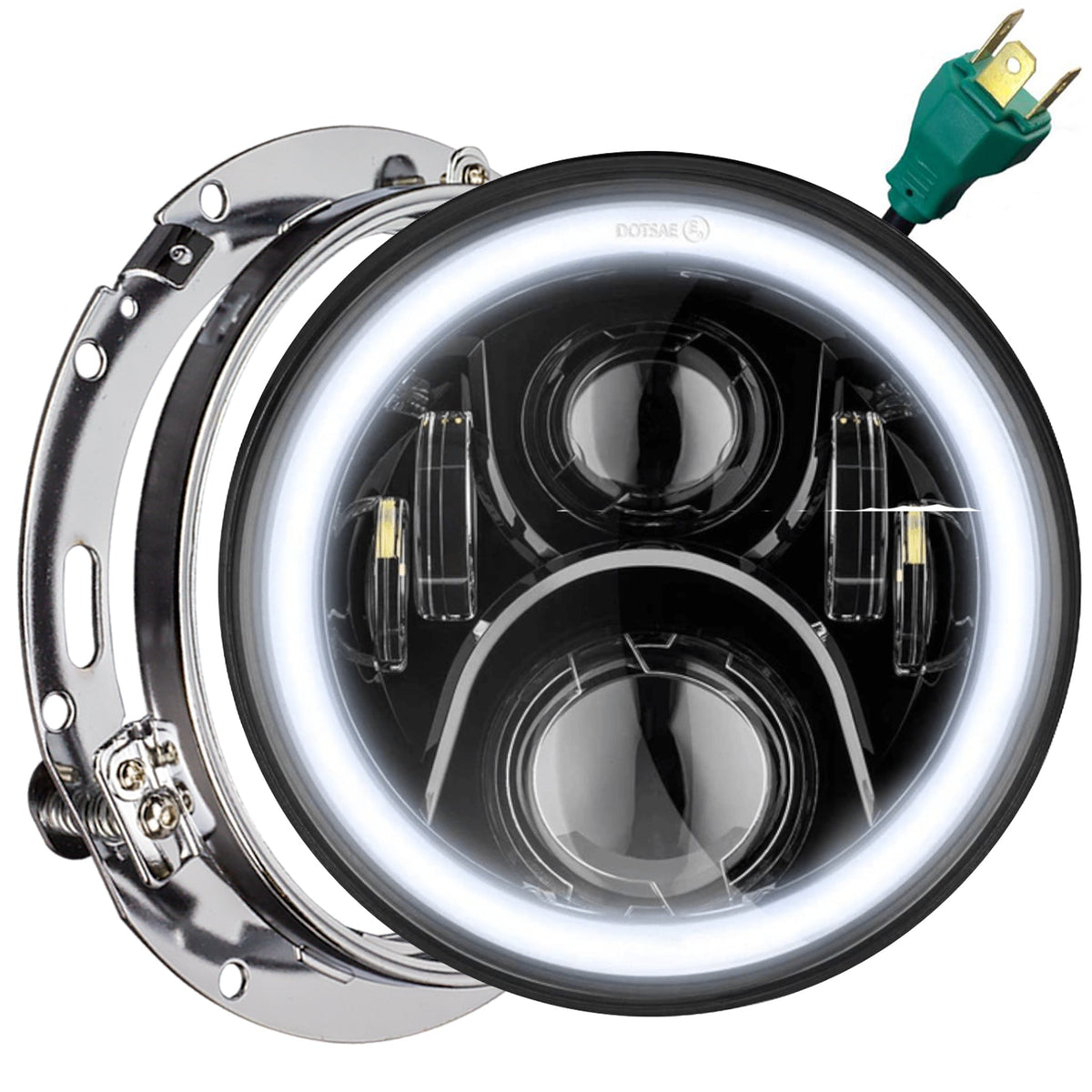

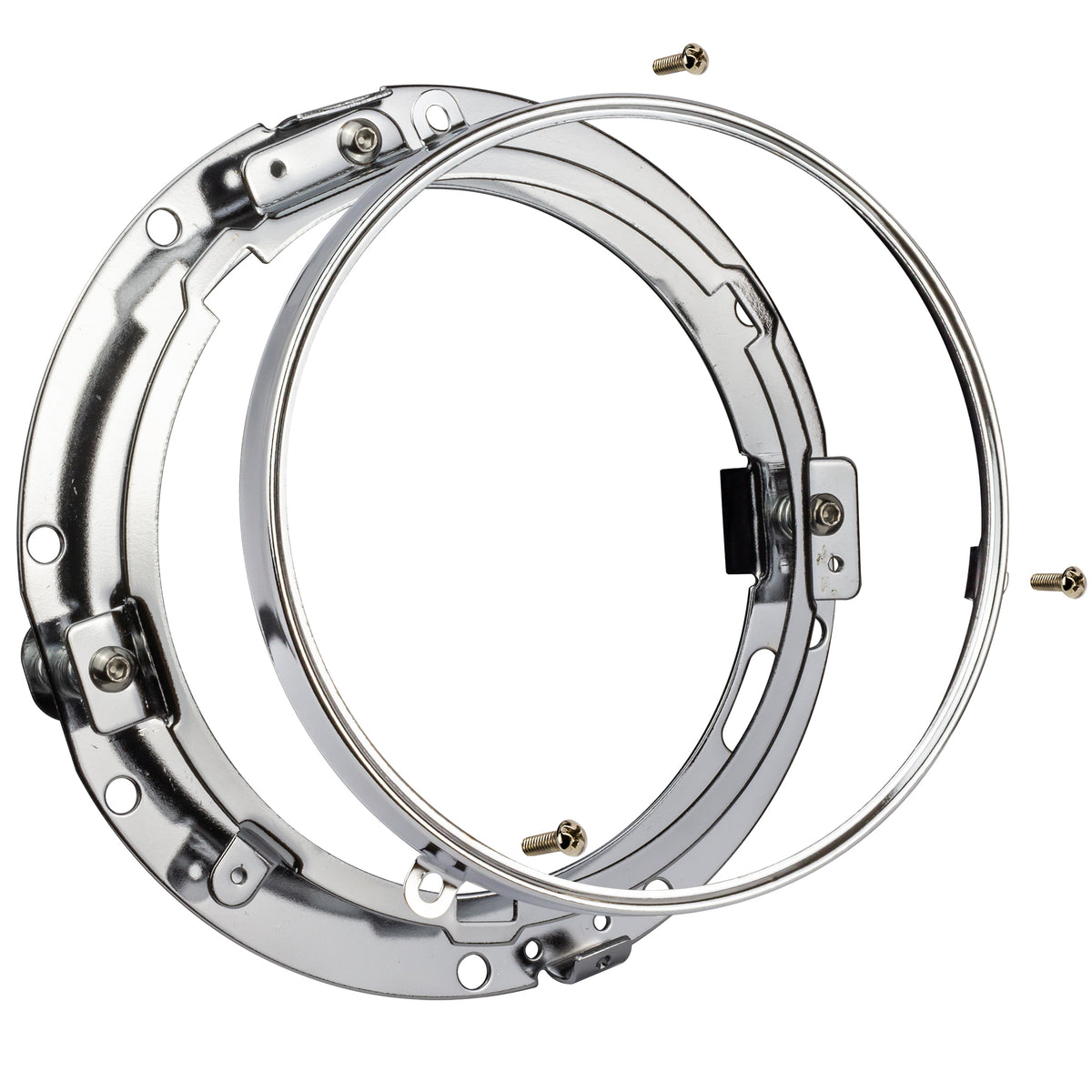

If your bike is 2013 and older, you will not need any of the adapter harnesses, but you will need the 8700R adapter ring if you have a 2013 and older Street Glide, Road King, or Electra Glide.

Installation Instructions

7" LED Headlight Installation Instructions

Applications

This is a general guideline for applications. There are many more models this product will fit. If you do not see your model listed, please contact us.

Road King

04-07 Road King Custom FLHRS

04-06 Road King Custom FLHRSI

94- Current Road King FLHR

96-06 Road King FLHRI

17-Current Road King Special FLHRXS

98-06 Road King Classic FLHRCI

07-13 Road King Classic FLHRC

Street Glide

06-Current Street Glide FLHX

14-Current Street Glide FLHXS

10-11 Street Glide Trike FLHXXX

Electra Glide & Ultra Classic

95-09 Electra Glide Standard FLHT

10-14 Electra Glide Police FLHT

10-14 Electra Glide Ultra Limited FLHTK

94-Current Electra Glide Ultra Classic FLHTCU

95-06 Electra Glide Ultra Classic FLHTCUI

94-13 Electra Glide Classic FLHTC

99-02 Electra Glide Classic FLHTCI

09-13 Tri Glide Ultra Classic FLHTCUTG

14-16 Tri Glide Ultra Classic FLHTCUTG

15-16 Electra Glide Ultra Classic Low FLHTCUL

15-Current Ultra Limited FLHTK

15-Current Ultra Limited Low FLHTKL

Softail Slim

14-17 Softail FLS

16-17 Softail Slim S FLSS

Fat Boy

01-06 Fat Boy FLSTFI

16-17 Fat Boy S FLSTFBS

94-17 Fat Boy FLSTF

10-16 Fat Boy Lo FLSTFB

Heritage Classic

94-17 Heritage Softail Classic FLSTC

01-06 Heritage Softail Classic EFI FLSTC

CVO

02-03 CVO Road King FLHRSEI

04-05 CVO Electra Glide FLHTCSE

06-13 CVO Ultra Classic Electra Glide FLHTCUSE

16-Current CVO Limited FLHTKSE

Indian Motorcycles

15-Current Roadmaster

14-Current Chieftain

18-Current Chieftain Classic

18-Current Chieftain Limited

17-Current Chieftain Dark Horse

14-18 Chief Classic

15-Current Chief Dark Horse

14-Current Chief Vintage

16-Current Springfield

18-Current Springfield Dark Horse

Yamaha Motorcycles

96-10 V-Star 650 Classic XVS650A

03-10 V-Star 650 Silverado XVS650AT

00-09 V-Star 1100 Classic XVS1100A

03-09 V-Star 1100 Silverado XVS1100AT

01-03 Road Star Midnight Star XV1600AS

04-07 Road Star Midnight Star XV1700AM

99-03 Road Star Silverado XV1600AT

04-10 Road Star Silverado XV1700AT

08-13 Road Star Silverado S XV1700ATS

04-07 Road Star Silverado MIdnight XV1700ATM

99-03 Road Star XV1600A

04-09 Road Star XV1700A

08-13 Road Star S VX1700AS
