Eagle Lights Load Resistors for 8748 Series LED Turn Signals
| Free Shipping | No Restocking Fees
Free Shipping Over $20.00
Who doesn't love free shipping?
Orders $20.00 or more ship free within the continental U.S.1. Go to checkout
2. Select FREE SHIPPING
3. Get your item in 3 - 5 business days.
No Restocking Fees
Doesn't fit? Don't love it?
Return any unused item within 30 days for a full refund.
1. Contact us.
2. Package your product.
3. Send it back!
Price: $ 19.99
Eagle Lights load resistors are recommended when installing LED turn signals on 2011 and earlier motorcycles and commercial vehicles.
- Load resistors eliminate LED related issues such as Hyper Flash, No Flash and replace bulb indicators.

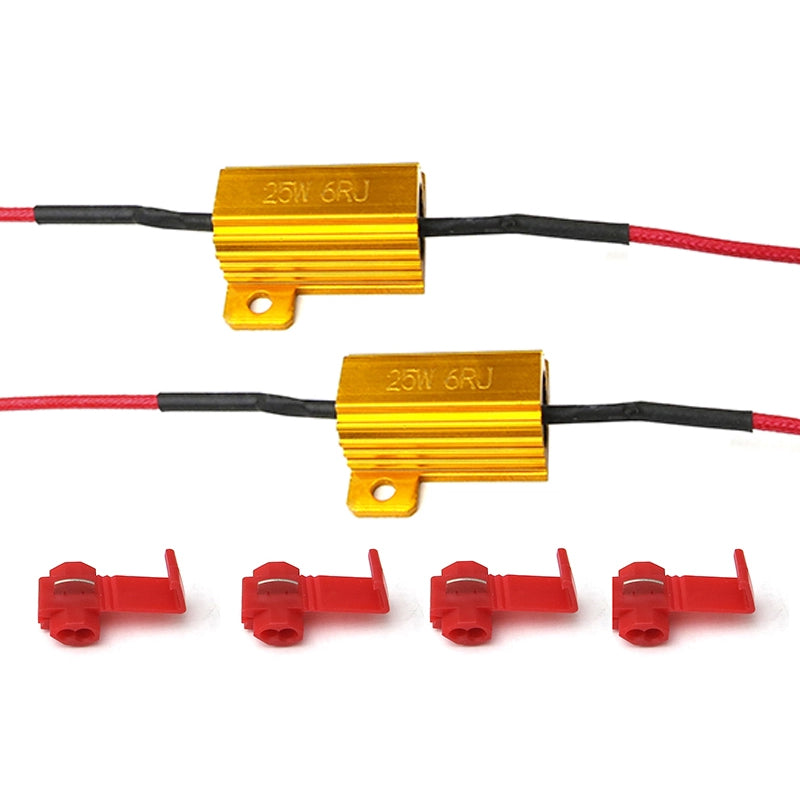

- 1 resistor is needed per turn signal. The resistors are sold as pairs and include easy to use cut in clamps.
- 25W 6-Ohm resistors are designed to be used with Eagle Lights products.
- Load resistors can get very hot. Avoid installing on plastic parts.
- Clears "bulb out signal" & "OBC error message" that can occur when installing LED turn signals.
Sold as pairs.
|Didn't find what you were looking for? Let us know!||Suggestion Box|
Share this Product
QUESTIONS & ANSWERSAsk a Question
Can you mount these behind the headlight pan on the FLSTC before they go into the main wireless harness and does each light need 1 resistor on each side or does 1 do the front and 1 does the rear.
The load resistors can be mounted anywhere on the bike. The can get very warm, so we do not recommend mounting them anywhere on plastic. Also we do not recommend putting them where they can touch other wires. Each light will need one resistor.
Would it be harmful to these resistors if they were tied into turn signal wiring under the rear fender. Under the fender they will be exposed to the elements, specifically water and dirt kicked up by the rear tire. As of this moment I have been unable to trace the wiring under the seat.
You can mount them under the fender. They will be exposed to the elements, but it may degrade the wiring over time.
Is there an installation guide for Harleys?

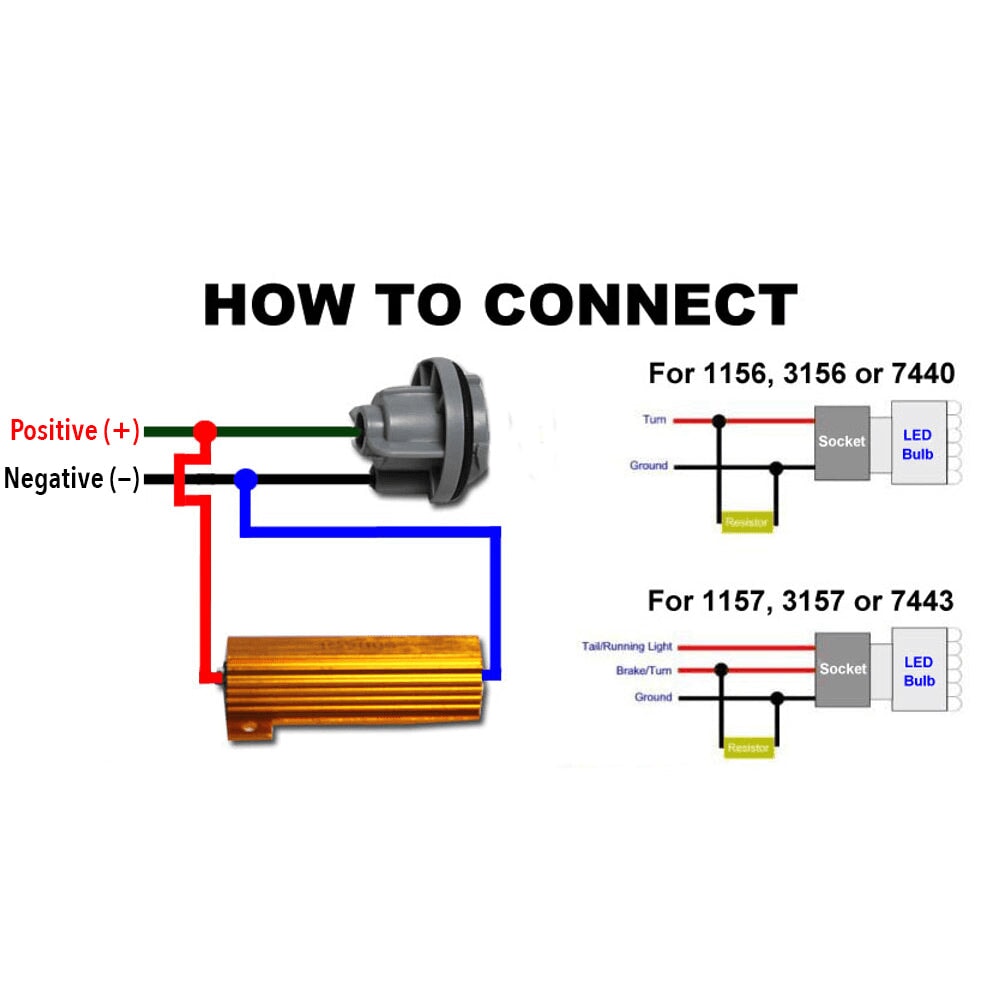

We do not have a specific installation guide for this product as it differs per bike. To wire them in you will have to bridge the positive wire for the turn signal with the ground for the turn signal. You can find a wiring diagram here: https://cdn.shopify.com/s/files/1/0941/7660/products/eagle-lights-load-resistor-for-8748-series-led-turn-signals-11189415_1024x1024.png?v=1523907118 . As for the location is varies bike to bike, but it is mainly wired in under the seat if possible.
