5 X 7 LED Headlights - Eagle Lights 5736B-2 Multi LED 5 X 7 / 6 X 7 Projection Headlight With DRL (H6054 H5054 H6054LL 69822 6052 6053 H6014 H6052)

Eagle Lights 5736B-2 Multi LED 5 x 7 / 6 x 7 Projection Headlight with DRL (H6054 H5054 H6054LL 69822 6052 6053 H6014 H6052)

| Free Shipping | No Restocking Fees
List Price: $ 234.00
Price: $ 179.99 and FREE Shipping
Part Number:

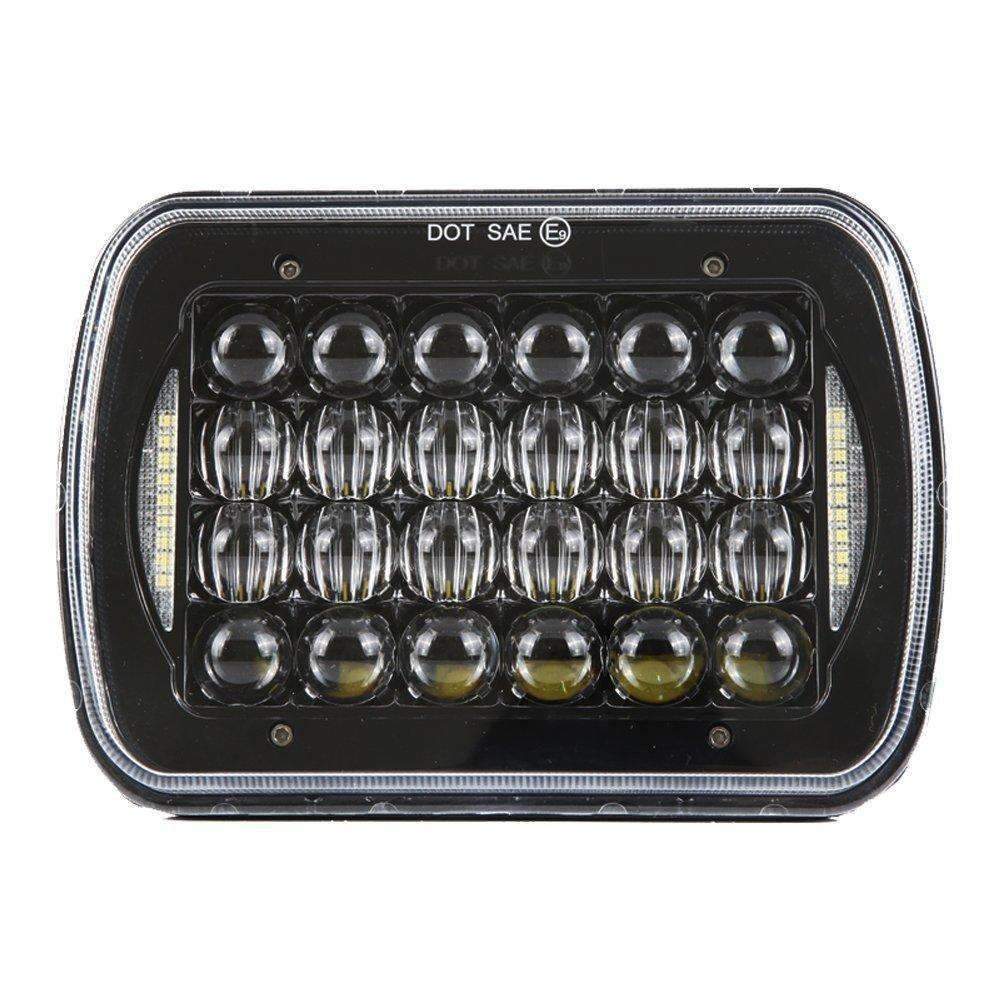

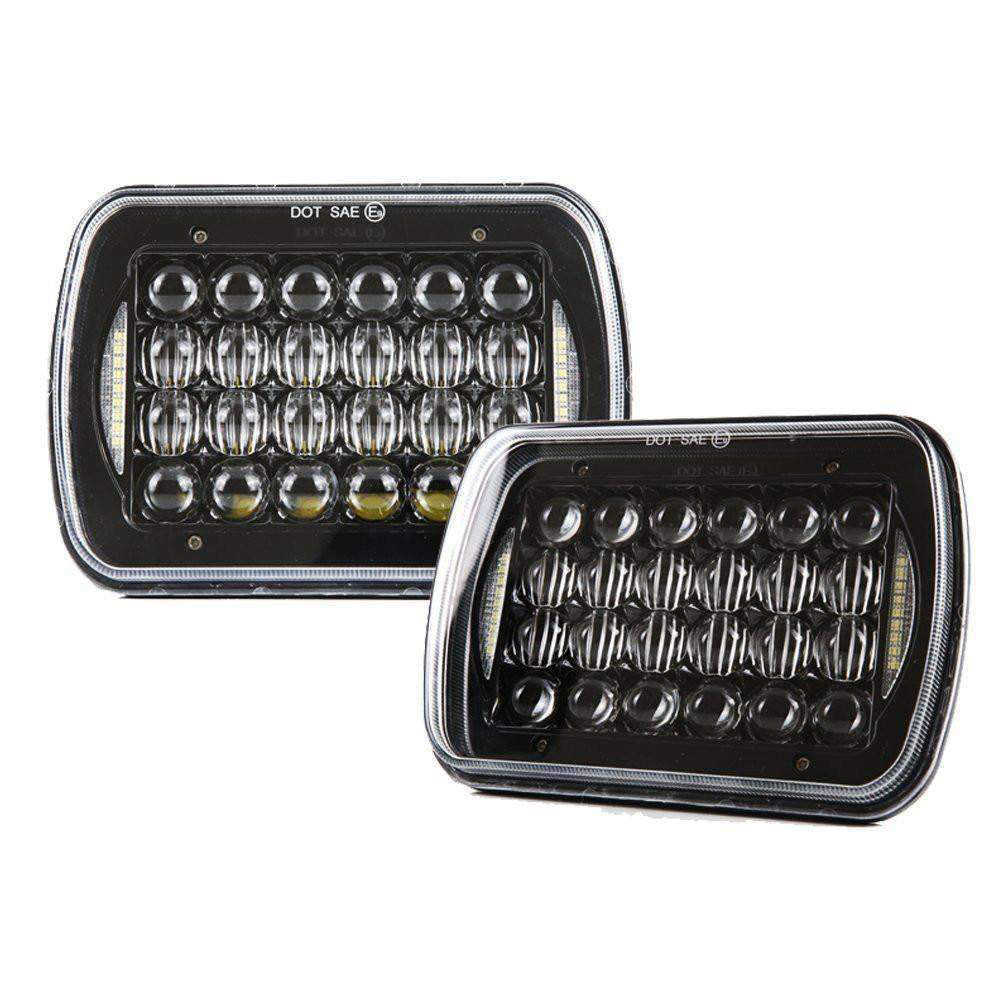

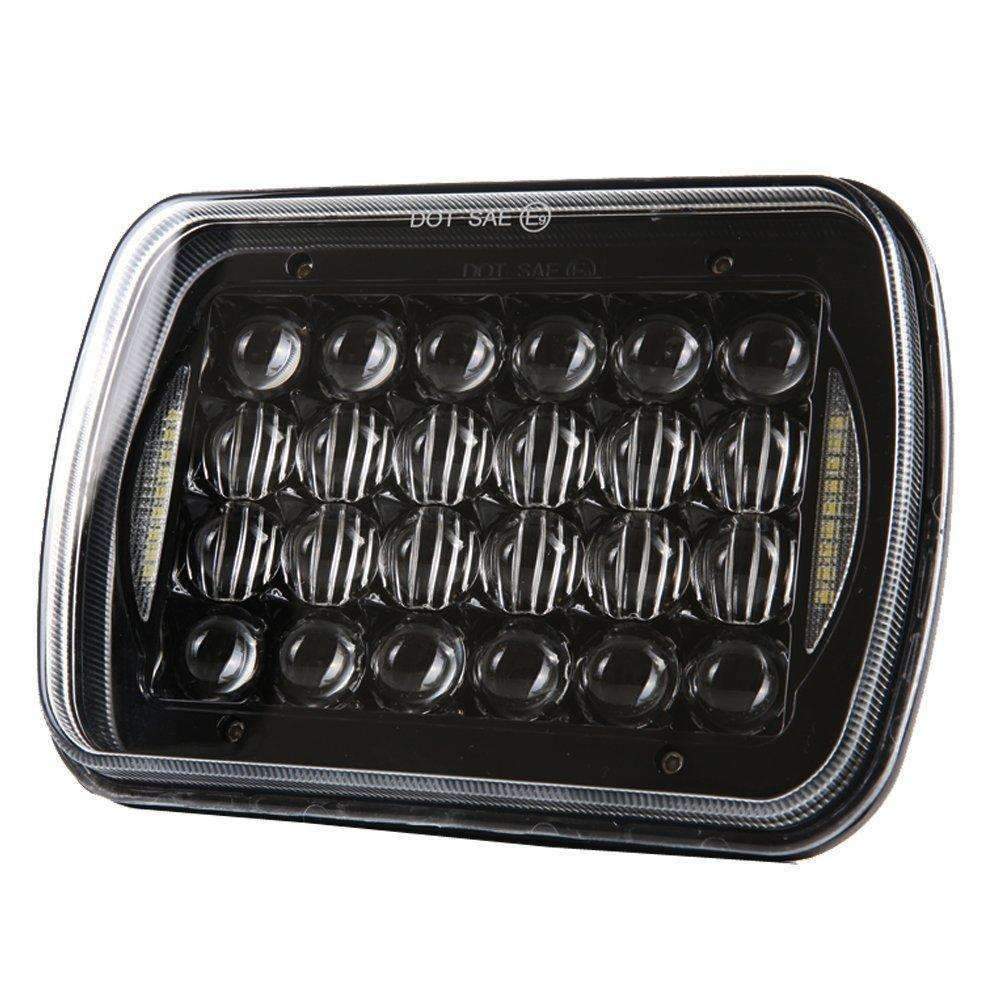

The Eagle Lights 5736B-2 headlight utilizes 36 diodes for intense white light output. The 2 center rows of 12 diodes are the low beam output. The top and bottom row are added in for high beam. DRL function included. Each of the sides uses 6 LEDs each. The DRL function is wired independently from the headlight. Sold as pair.

Replaces stock OEM headlight numbers: H6054 H5054 H6054LL 69822 6052 6053 H6014 H6052

Technical Specifications:

Description 12-24V DOT LED High & Low Beam Headlight with Black Inner Bezel
Height 5.25"
Width 7.4"
Depth 2.67"
Shape Rectangle
Outer Lens Material Polycarbonate Outer Lens
Color Clear
Housing Material Die-Cast Aluminum Housing
Color Black
Bezel Color Black
Retrofits 5 x 7 Sealed Headlights
Minimum Operating Temperature -40 (°C) / -40 (°F)
Maximum Operating Temperature 65 (°C) / 149 (°F) Connector or Wiring
Product Weight 2.4LBS
Lumen Output: 4800 LM (High Beam), 3000 LM (Low Beam)



Product Specifications
Part Number
Didn't find what you were looking for? Let us know! Suggestion Box

Share this Product

QUESTIONS & ANSWERS

Ask a Question
  • Will these fit a 2004 Chevy express 3500 and will the require an extra resistor so the relay doesn’t think the headlight is out.

    Yes, they are a plug and play replacement for a 2004 Chevy Express 3500 with sealed beam headlights. You will not need any resistors for the install.

  • Will these fit a 2000 International Eagle 9400 IX and are they just drop in? This is 2 5x7 LED headlights?

    Yes, they should fit your truck and are plug and play. This kit is for 2 5 x 7 LED headlights
