4 X 6 LED Headlights - Eagle Lights 4627B-2 LED 4 X 6 Headlights - Double Pack

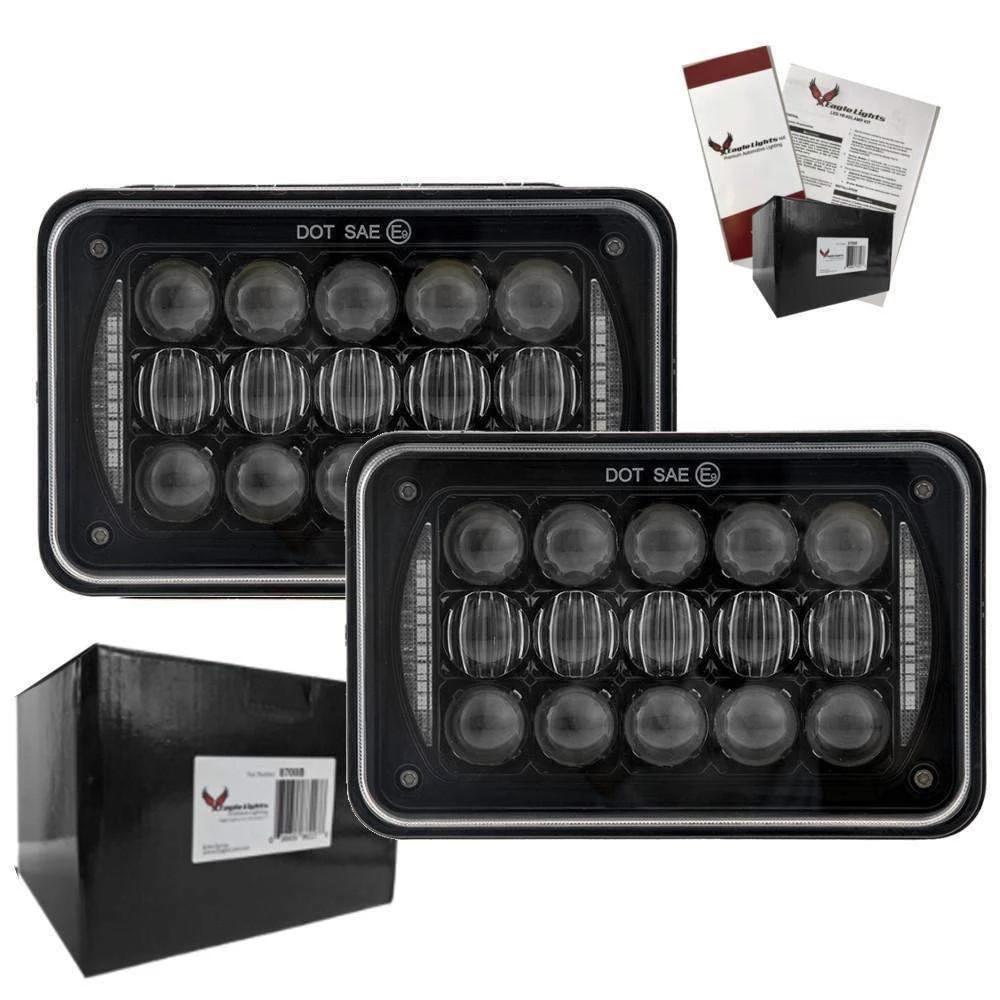

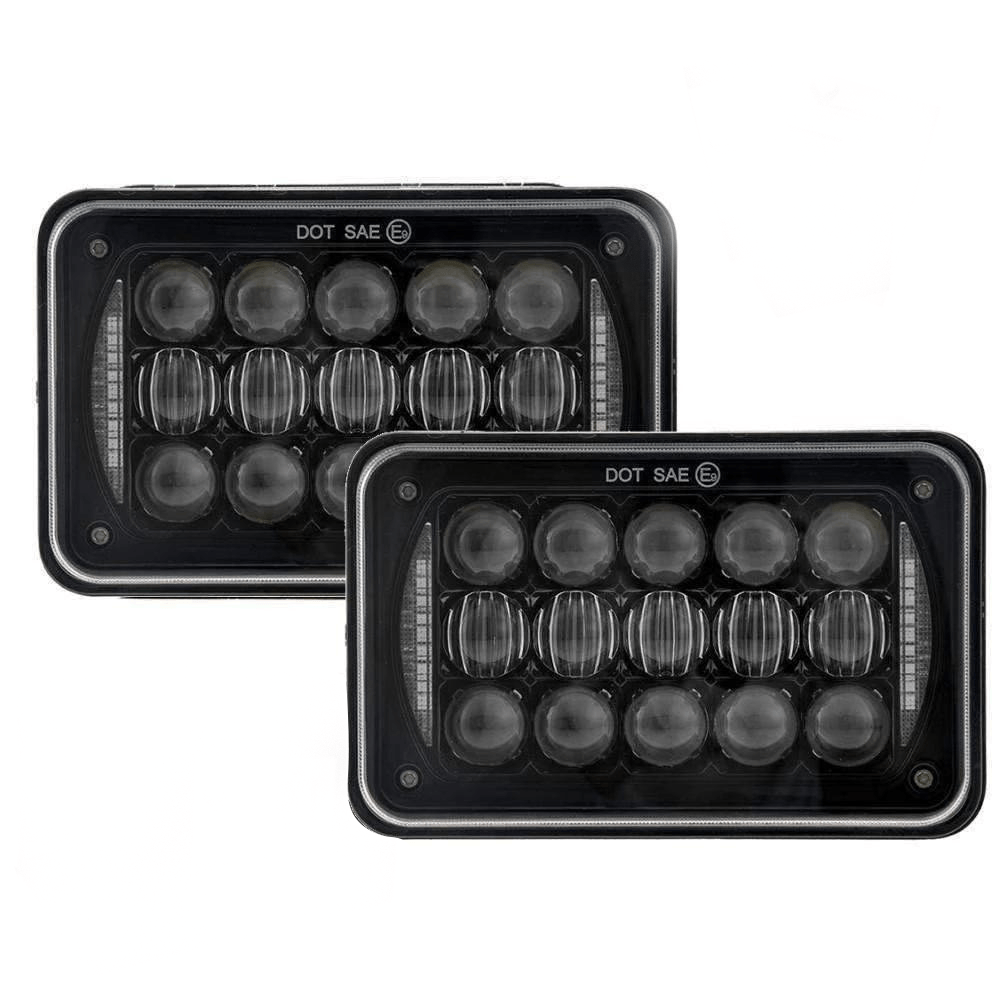

Eagle Lights 4627B-2 LED 4 x 6 Headlights - Double Pack

| Free Shipping | No Restocking Fees
List Price: $ 195.00
Price: $ 149.99 and FREE Shipping
Part Number:

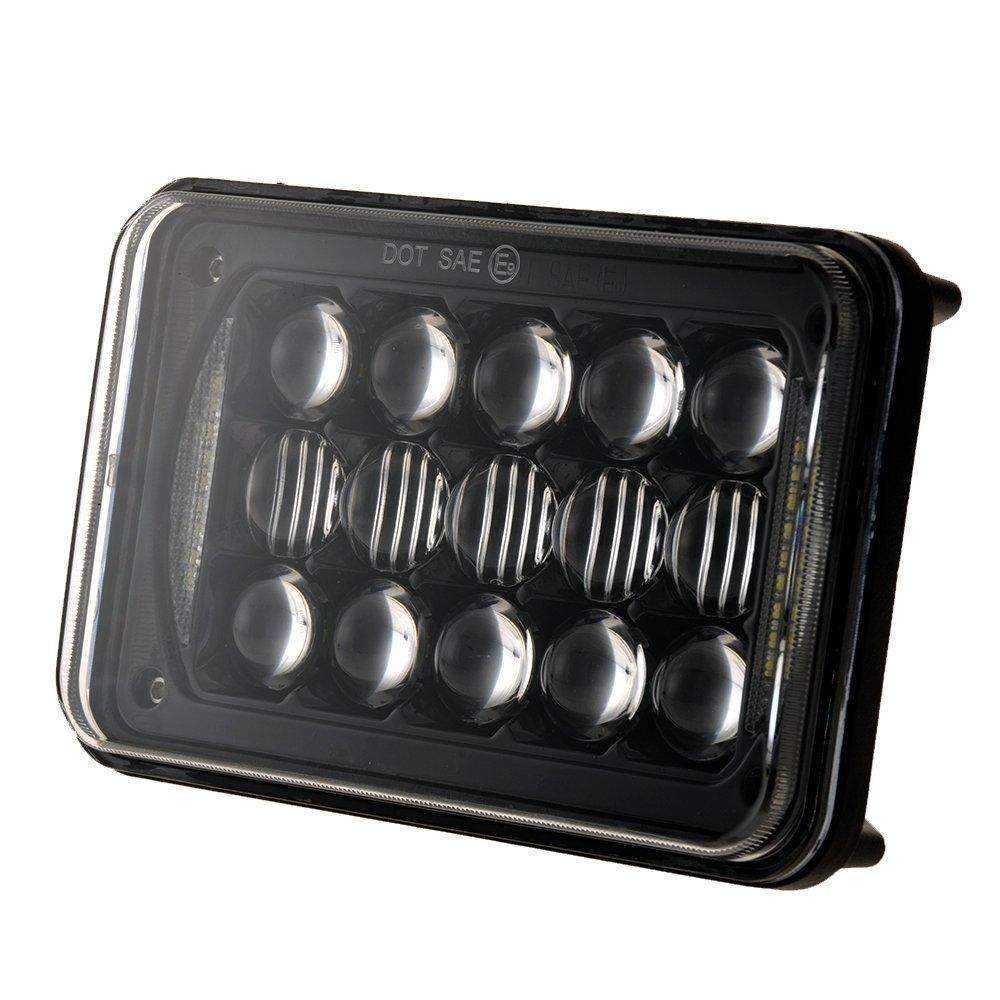

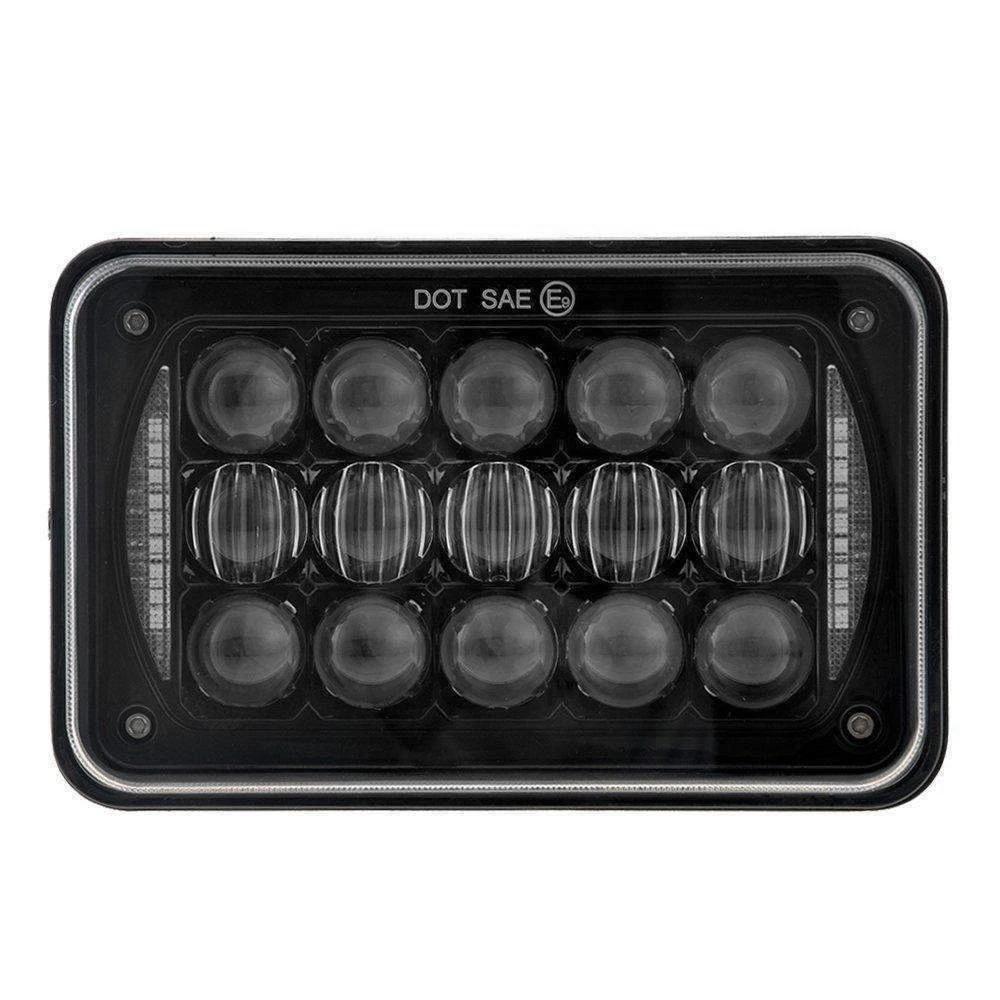

Introducing the Eagle Lights 4 x 6 LED headlight. Wired as an industry standard H4. The low beam utilizes 5 LEDs for low beam and the combined 15 LEDs for high beam. 6 LEDs on either side function as a DRL light that can be wired separately.

  • Optional dual mounting assembly is available in RH or LH 4 x 6 LED headlight configurations
  • UV-resistant polycarbonate lens
  • Die-cast aluminum housing provides maximum protection
  • Plug and play, no LED canbus needed
  • High Beam and Low Beam functionality.
  • Bulb Lifespan of 30000 Hours
  • 3X Brighter than Halogen Bulbs and equivalent to 35W HID
  • SAE / DOT Compliance assures accurate beam pattern distribution & precise fitment
  • 1 Year Warranty

Technical Specifications:

Description 12-24V DOT LED High & Low Beam Headlight with Black Inner Bezel
Height 4.25"
Width 6.6"
Depth 2.67"
Shape Rectangle
Outer Lens Material Polycarbonate Outer Lens
Color Clear
Housing Material Die-Cast Aluminum Housing
Color Black
Bezel Color Black
Retrofits 4 x 6 Incandescent Lights (H4651, H4652, H4656, H4666, H6545)
Minimum Operating Temperature -40 (°C) / -40 (°F)
Maximum Operating Temperature 65 (°C) / 149 (°F) Connector or Wiring
Product Weight 2.4LBS
Lumen Output: 4800 LM (High Beam), 3000 LM (Low Beam)

Product Specifications
Part Number
Didn't find what you were looking for? Let us know! Suggestion Box

Share this Product

QUESTIONS & ANSWERS

Ask a Question
  • Do you have a wire diagram or schematic? Can be wired for high/low and daylight running but is there a harness that is plug and play?

    We do not have a wiring diagram for it specifically, but they come with a standard H4 harness. Please contact our tech dept. at support@eaglelites.com with the vehcile information and we may be able to custom wire it for you.

  • This says 2 led headlight. Does this mean 2 headlights for the price? 2 actual lights? A double pack is what it is called on other headlights on this site. This says headlight as in 1 bulb.

    This is for two headlights. We will update the title to be more clear. Thank you.
