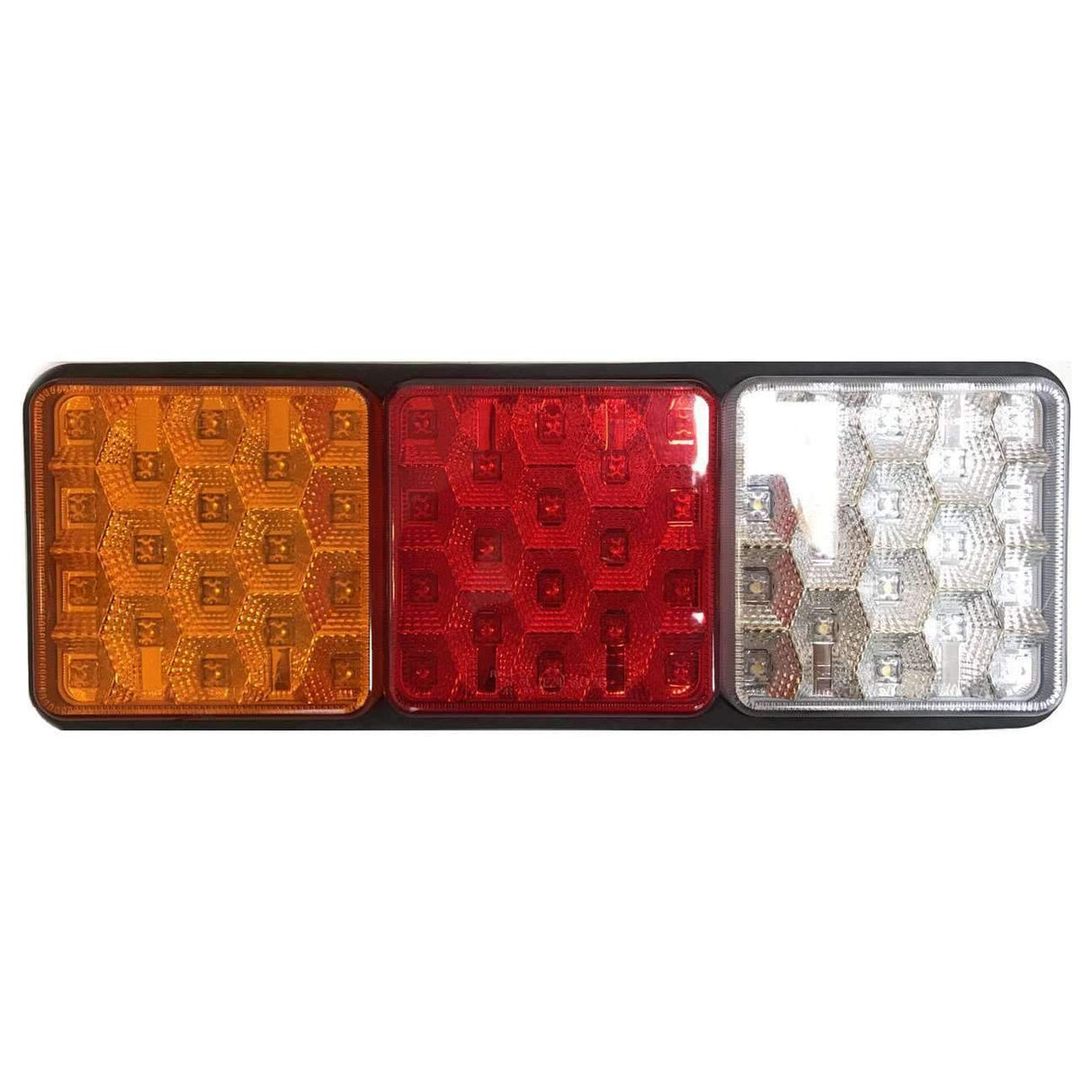

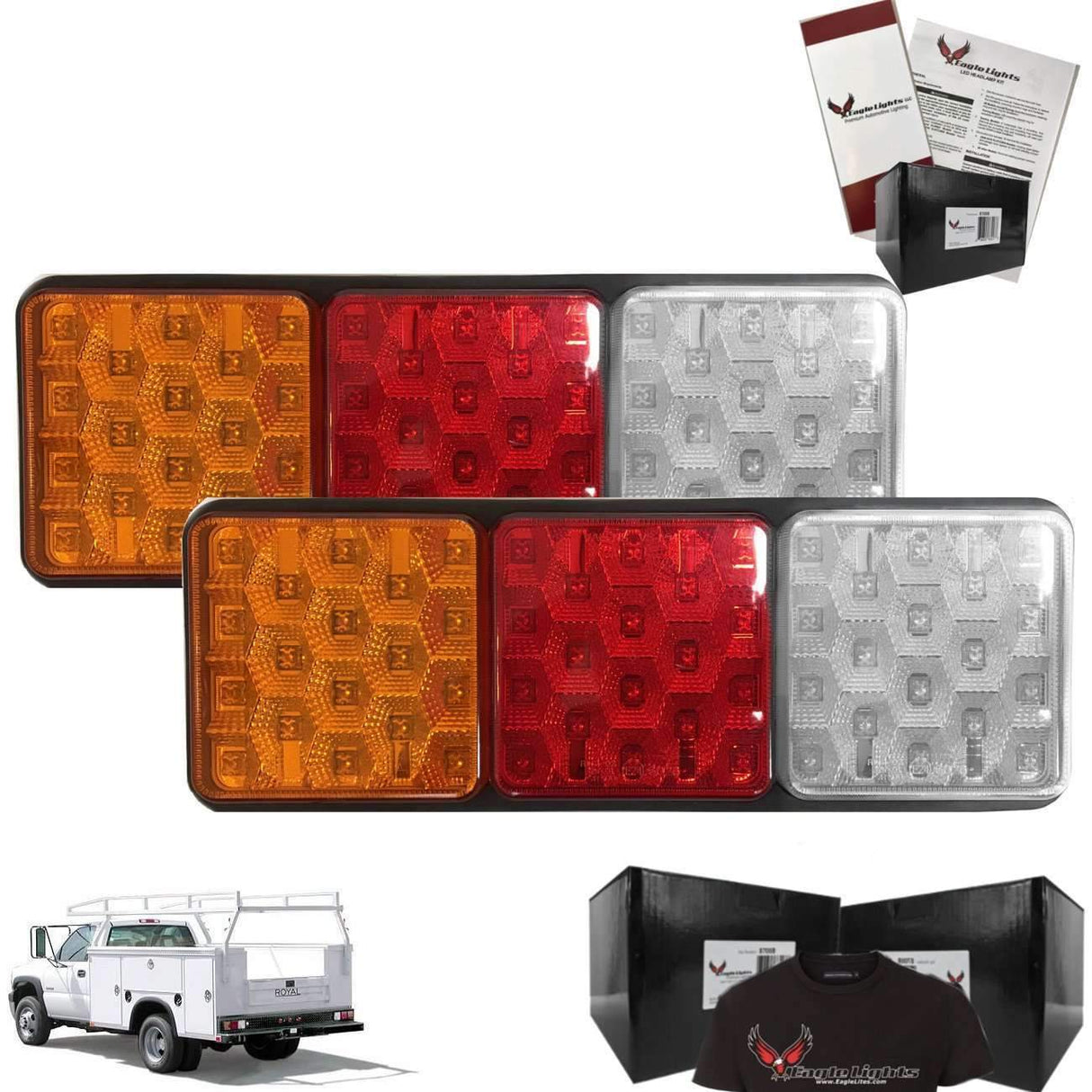

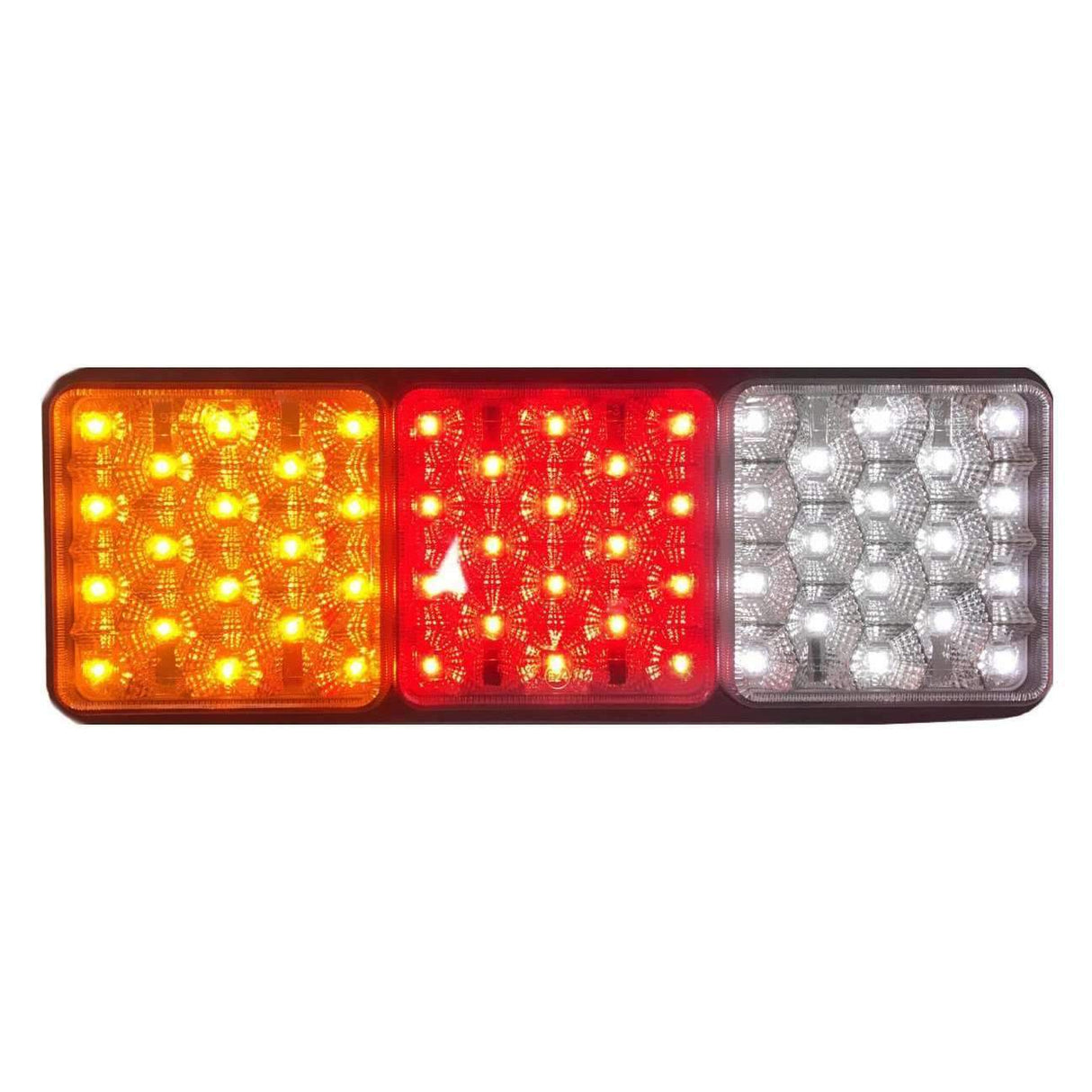

Eagle Lights 8002 LED Module - Generation II Rubbolite Universal Rear Lamp Replacement 12V / 24V 4" x 4" Lenses- Left / Right - Double Pack

Save $ 89.99
Part Number: 8002G2-2 | Free Shipping | Lifetime Warranty |
Earn 2999 EaglePoints

5 reviews |

$ 299.99 $ 389.98
In stock



Lifetime Warranty



Ask a Question
  • Will these fit a 2004 Chevy 3500 I see only 2 bolts on the back and mine have 3? Also is the wiring harness the same?

    Ours only uses the two bolts. It fits into the factory two bolts and the middle is not used. The wiring harness consists of 5 leads that neeed to be wired into your current housing. It does not use the plug.

  • Can the Lens modules be istalled into the rubbolite housing? I need to convert a 2 lens rubbolite with led lenses.

    Unfortunately, they can not be installed into the standard Rubbolite housing. The unit will need to be replaced the with 8002G2-2 LED units.

  • I have a 2007 chevy sierra classic with a royal service body, it has a Distribution board for wiring . Do I need resisters for the LEDS ? am I to just cut and tie wires to truck wires? Will this system work for my truck?

    Yes, this will work on a 2007 Chevy with a Royal truck body. You will need two resistors, one for each turn signal. As for wiring it, the light needs to be hardwired to the trucks harness.

  • Im trying to save myself some time installing this on a couple of 2008 silverado 3500s, are the 8002 wire outs as follows: White-ground Brown -Taillight Yellow- Signal Red-Reverse Black -Brake

    I will list the color codes for the wires below:

    Black – Reverse Light Connection
    White – Common Ground Connection
    Yellow – Turn Signal Positive Connection
    Brown – Running Light Positive Connection
    Red – Brake Light Positive Connection

  • Can I get a picture of the rear of this tail, stop, turn signal light with the wiring and mounting studs?

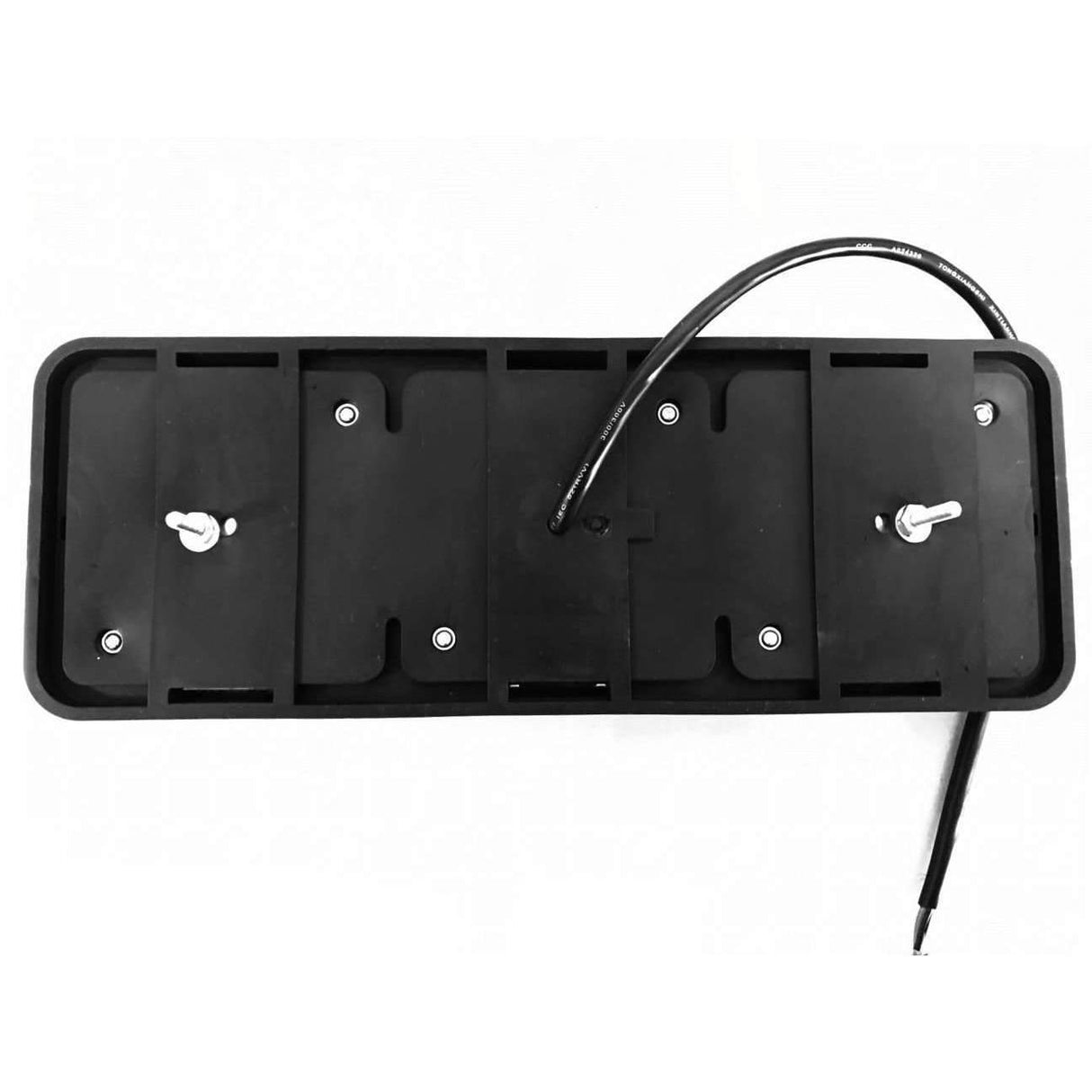

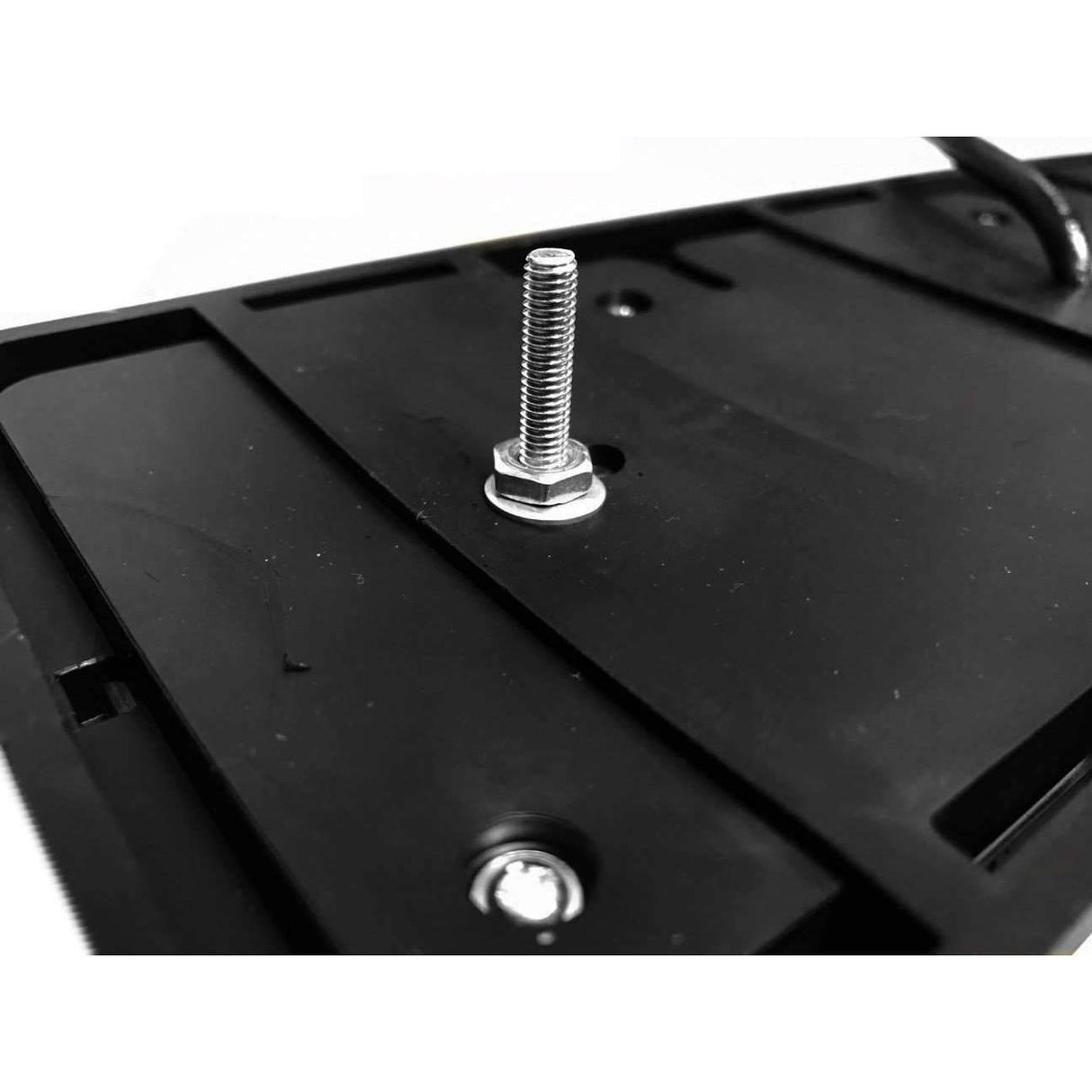

    The mounting studs can be seen here. The wiring is 5 wires. One common ground and positive wires for the brake, running light, turn signal, and reverse light.

  • those fit to silverado 2011 with utility bed?

    Yes, they will fit the utility bed.

  • Where can I find a wiring diagram for a 2003 check 2500?

    Unfortunately we do not have wiring diagrams for specific vehicles. We are sorry for any inconvenience.

  • is there a mounting bracket. would like to use on the rear side of dumptruck. Relocating tail lights and upgrading to LED.

    Unfortunately, there is not a mounting bracket. They mount into the OEM spot on the truck.
