7” LED Headlight And Passing Lights - Eagle Lights 8700 Black Harley 7" Round LED Headlight With Matching Black Passing Lamps*

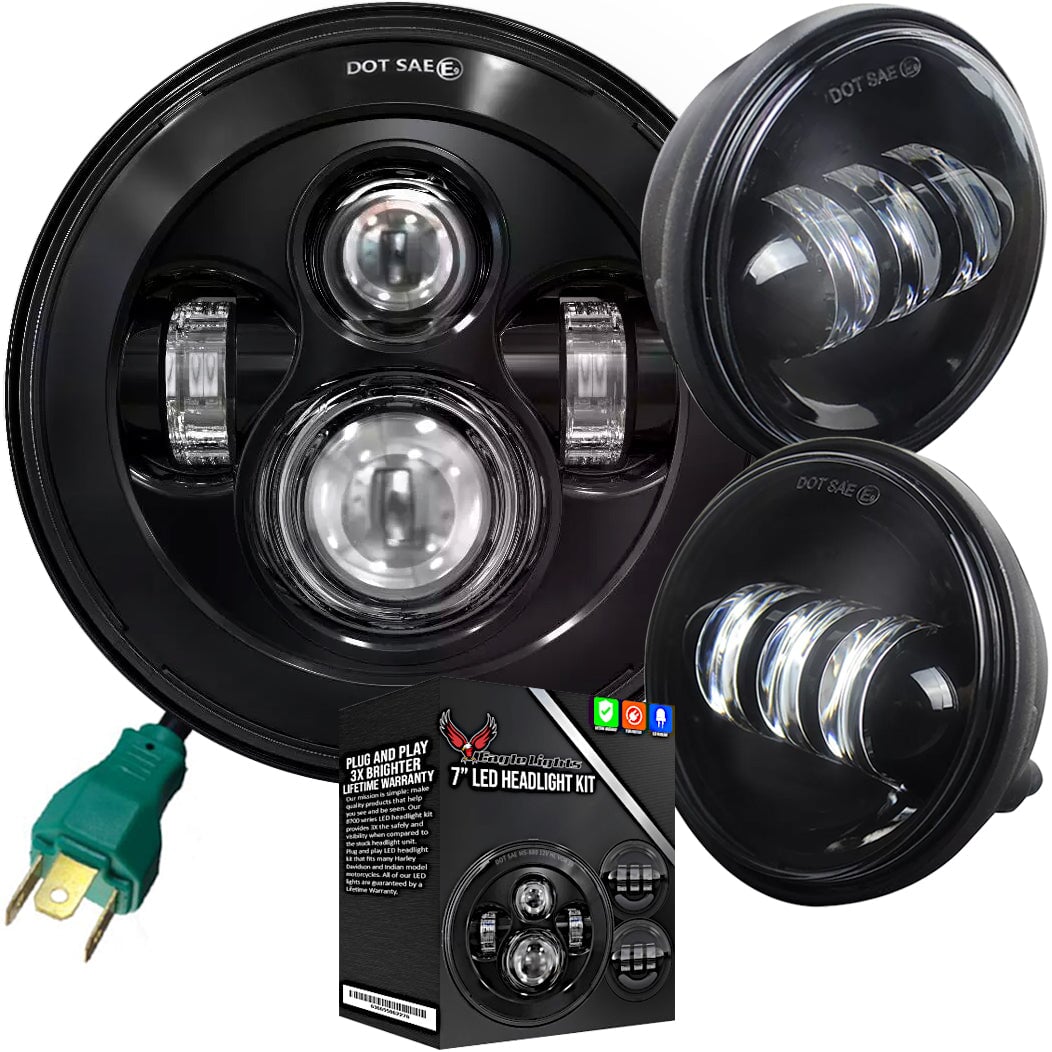

Eagle Lights 8700 Black Harley 7" Round LED Headlight with Matching Black Passing Lamps*

| Free Shipping | No Restocking Fees
List Price: $ 286.00
Price: $ 199.99 and FREE Shipping
Part Number:

Product Options:

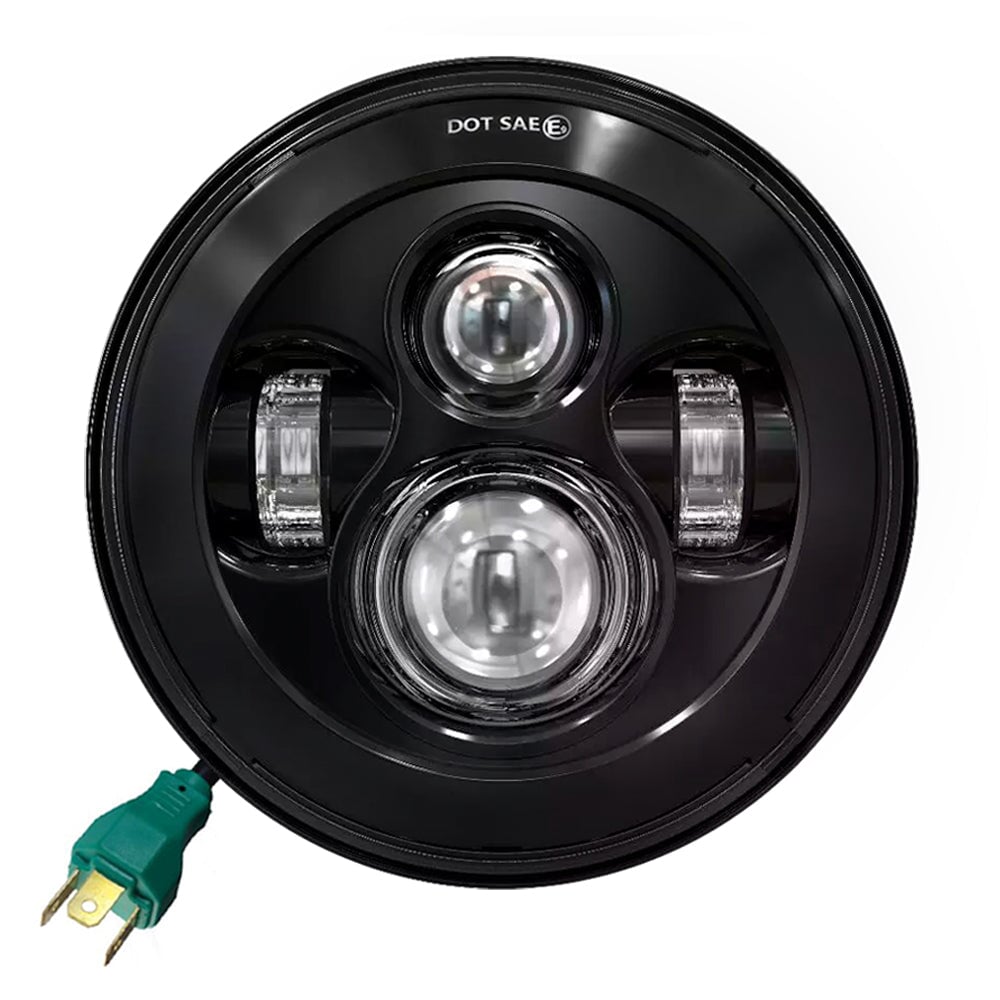

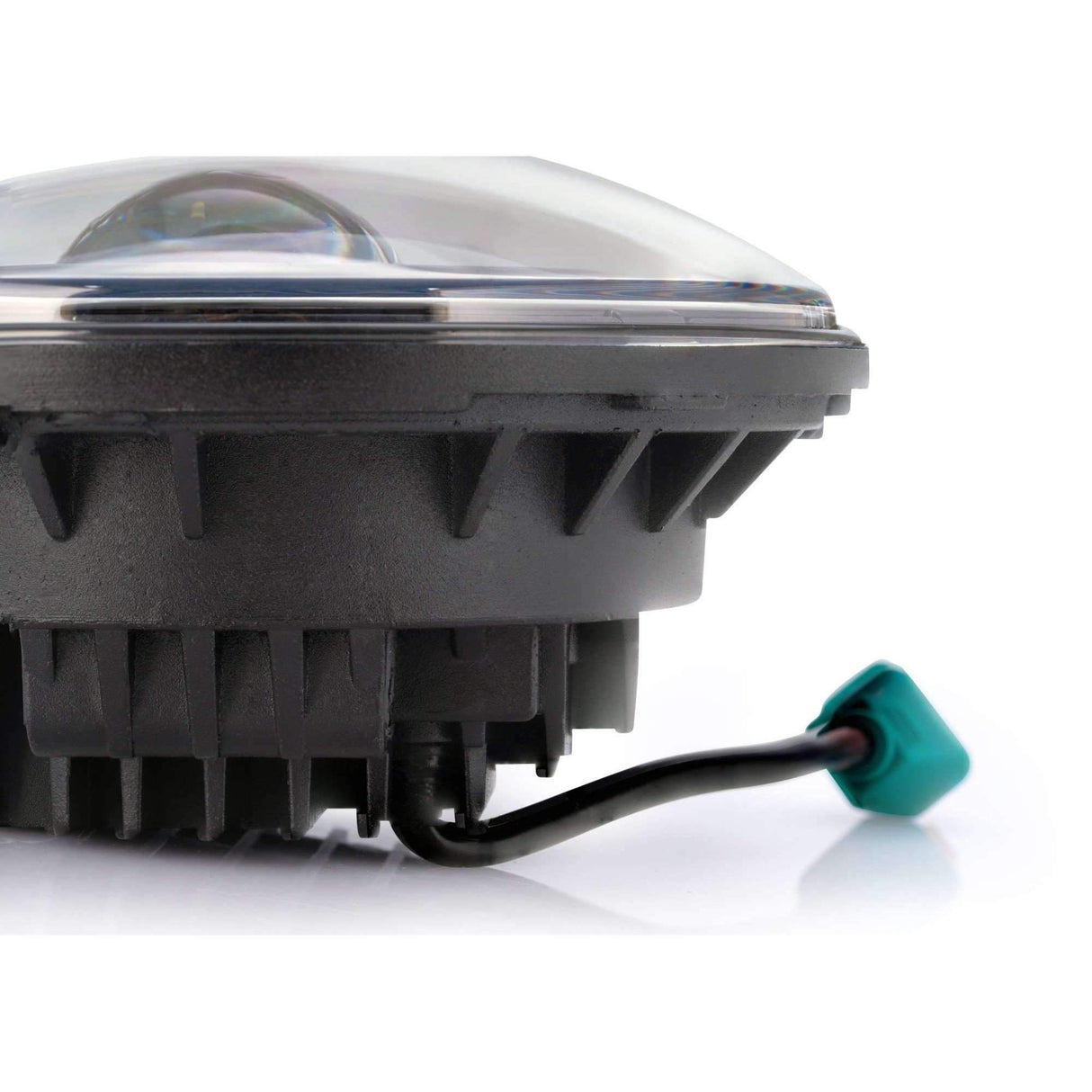

Eagle Lights 8700 LED projector headlight utilizes high intensity bright white LEDs with a color temperature over 6000K. This is a high performance LED headlight, designed to be a direct replacement for 7" headlights. It offers superior visibility, safety, and durability - making it the most advanced 7" LED headlight available. The light is a direct replacement for an H6024, 2D1, or any other 7" round light.

8700B Features:
  • EAGLE LIGHTS QUALITY - The original Eagle Lights 7" LED headlight. The Eagle Lights 8700 headlight made with a heat treated die-cast aluminum body and high quality polycarbonate plastic lens for extra durability. Powered by high output LEDs, the best and brightest 7" LED Headlight available.
  • PLUG N' PLAY - The headlight and the auxiliary lights both come with the OEM connector that comes standard on many different Harley Davidsons and other bikes. Extra harnesses for other models are also included should they be needed. No splicing, no cutting. Just drop it in and go for a ride.
  • GUARANTEED BUZZ FREE - Unlike many others these lights are guaranteed to be static and radio interference free. If you have a radio this is the light for you!
  • LOTS OF POWER, LOTS OF LIGHT - At over 1770 Lumens for the headlight and 1200 Lumens for each auxiliary light, there is nowhere you can't go. The headlight and auxiliary lights come with a wide angle of projection and a color temperature of over 6000K, the road will be bright, easily visible and safe.

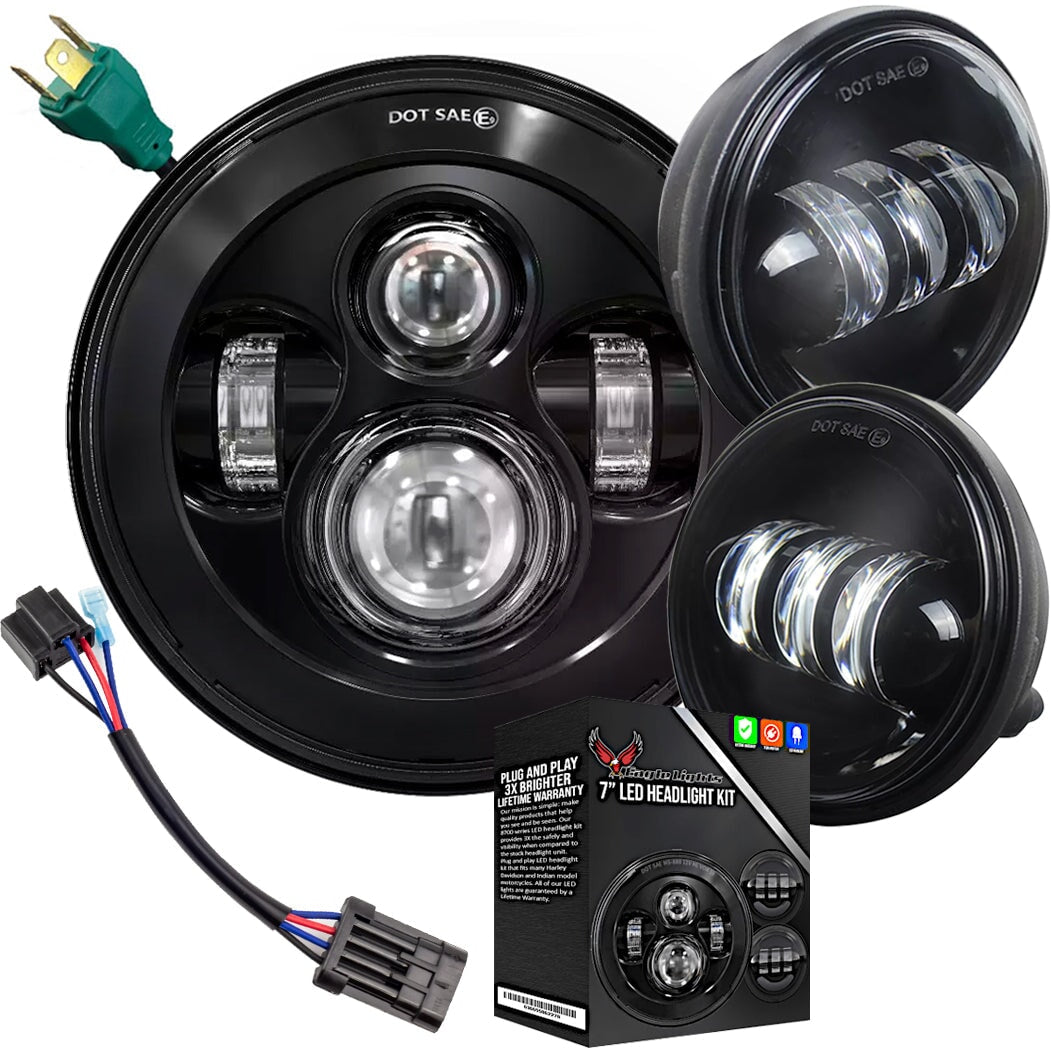

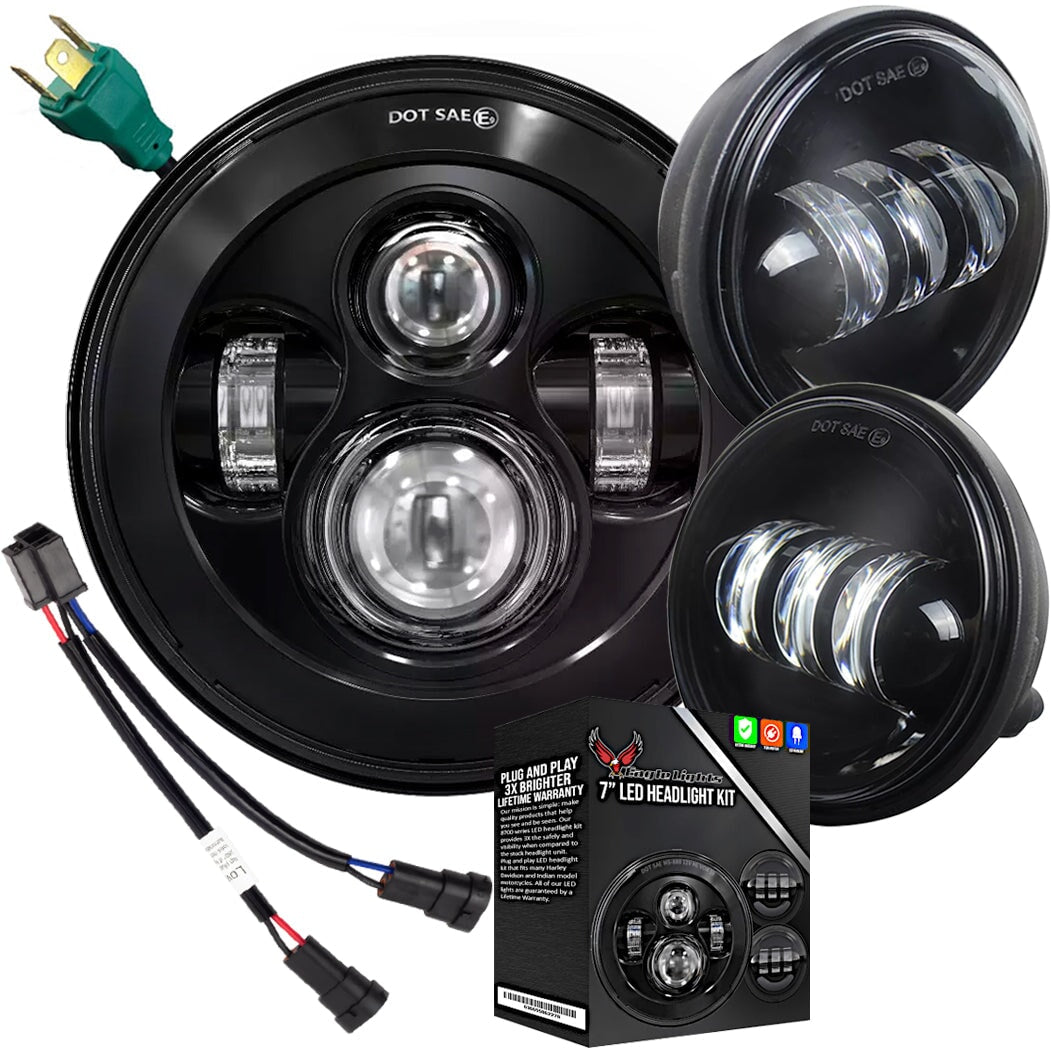

  • ALL THE PARTS YOU NEED - Have a touring model? This is the kit you need. It comes with the headlight, passing lights and adapter ring all in one package.
  • EAGLE LIGHTS LIFETIME WARRANTY - Our LED headlights are designed to outlast your bike! But should something go wrong, you are covered by the Eagle Lights Lifetime Manufacturer Warranty. The best warranty in the business! No hassle returns and no hassle warranty replacement.

Installation Accessories Guide:
Product Wiring Harness Note:
If your bike is 2014 or newer, you will need one of two adapter harnesses. If your headlight has one bulb in the main housing, you will need part number 69200897. If your headlight has two bulbs in the main housing, you will need part number 69200899.
Adapter Ring Product Note:

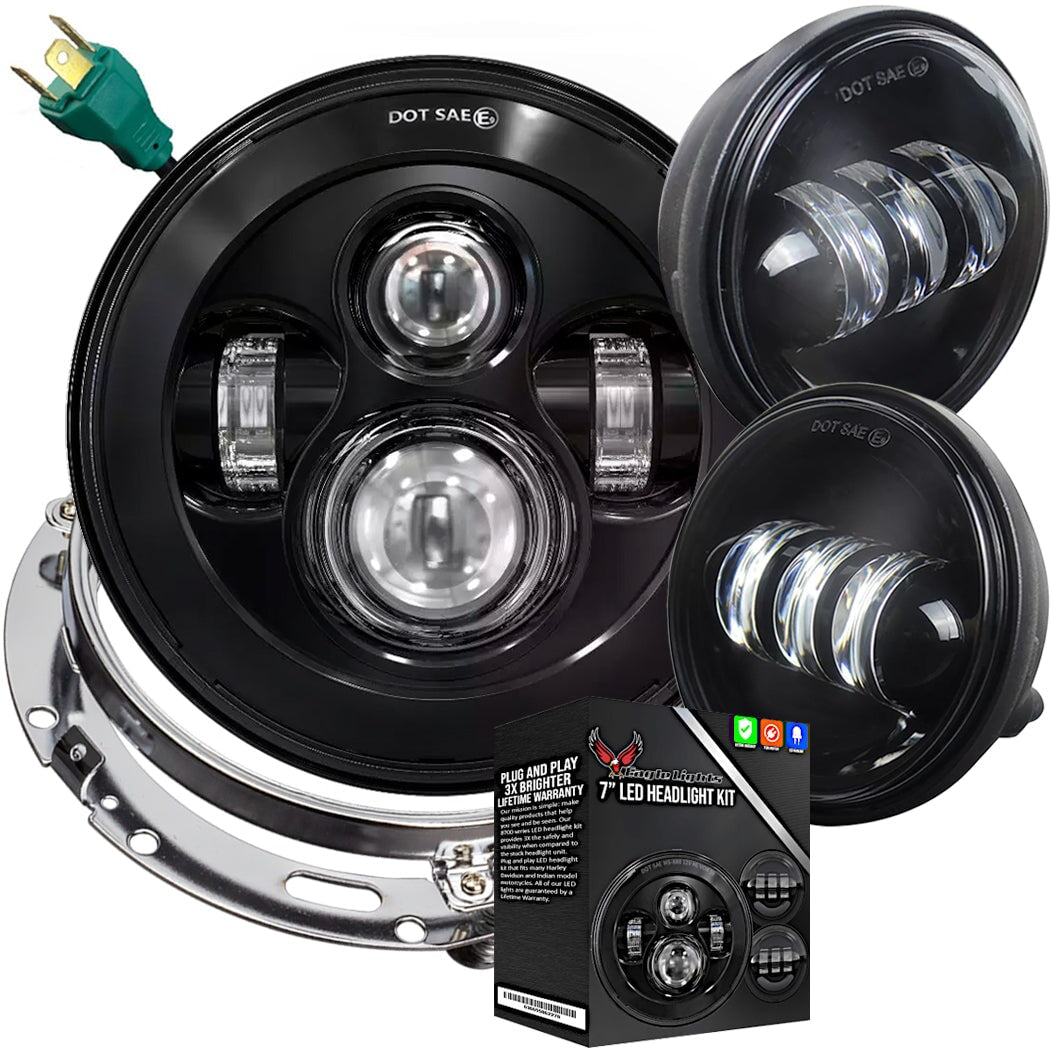

If your bike is 2013 and older, you will not need any of the adapter harnesses.  You will need the 8700R adapter ring if you have a 2013 and older Street Glide, Road King, or Electra Glide.

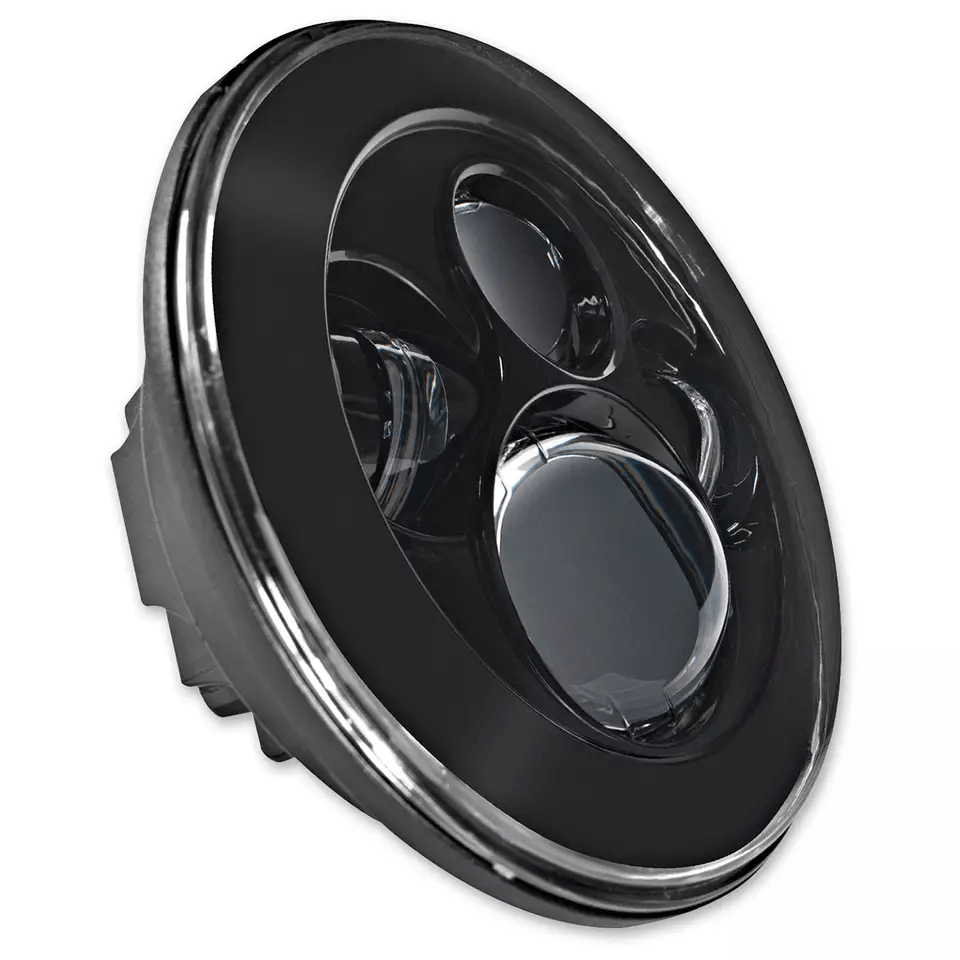

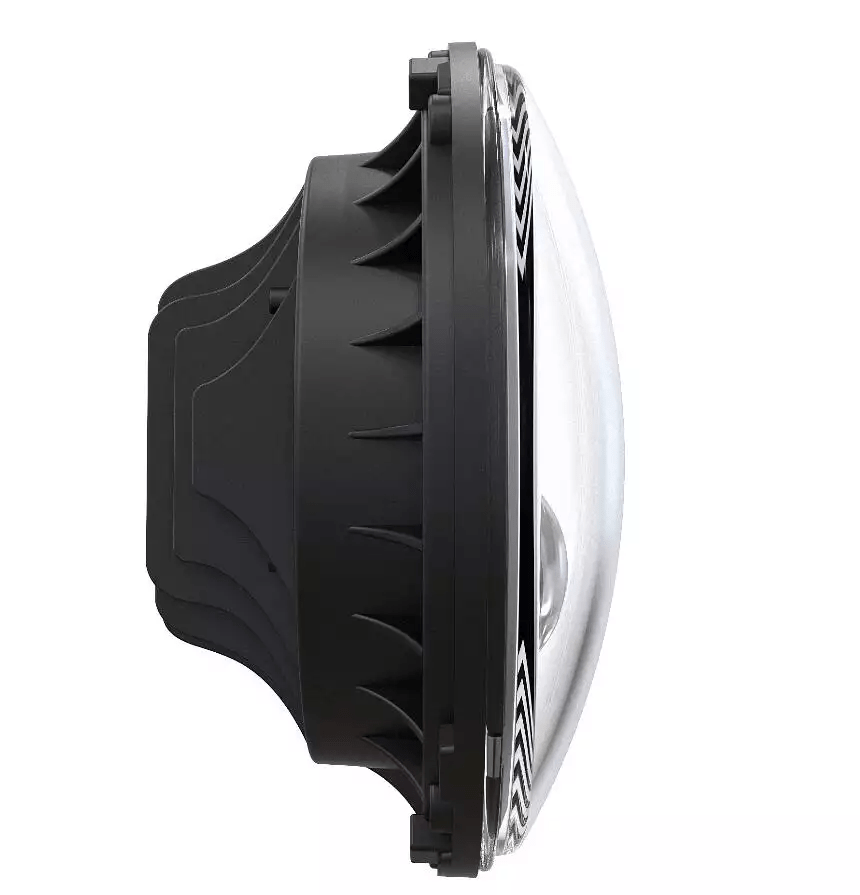

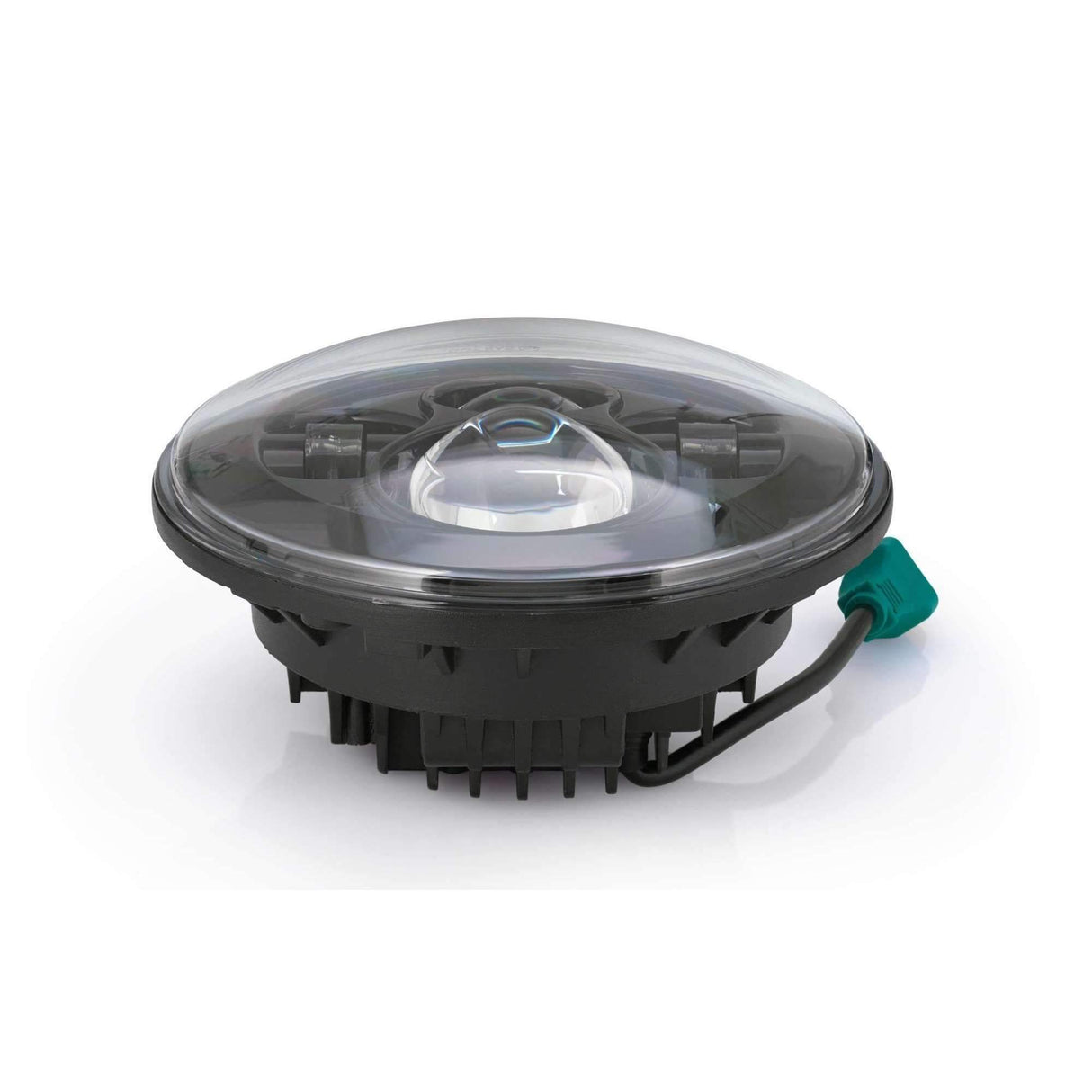

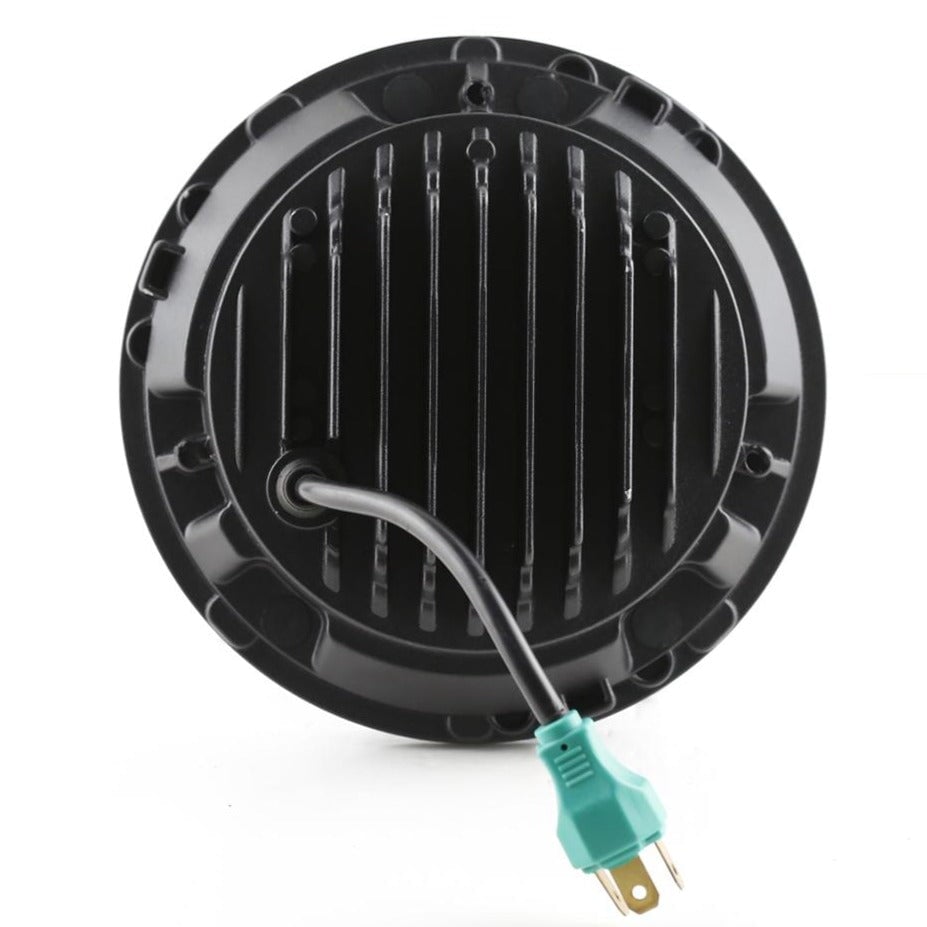

8700 Generation I Technical Specifications:

Description 12-24V DOT LED High & Low Beam Headlight with Black Inner Bezel
Height 176.53 (mm) / 6.95 (in)
Width 176.53 (mm) / 6.95 (in)
Depth 99.82 (mm) / 3.93 (in)
Shape Round
Outer Lens Material Polycarbonate Outer Lens
Color Clear
Housing Material Die-Cast Aluminum Housing
Bezel Color Black / Chrome
Retrofits 2D1 "PAR56" or 7" Round Headlights
Minimum Operating Temperature -40 (°C) / -40 (°F)
Maximum Operating Temperature 65 (°C) / 149 (°F) Connector or Wiring
Product Weight 2.31 (lbs) / 1.05 (kgs)
Lumen Output: 1770 LM (High Beam), 1350 LM (Low Beam)

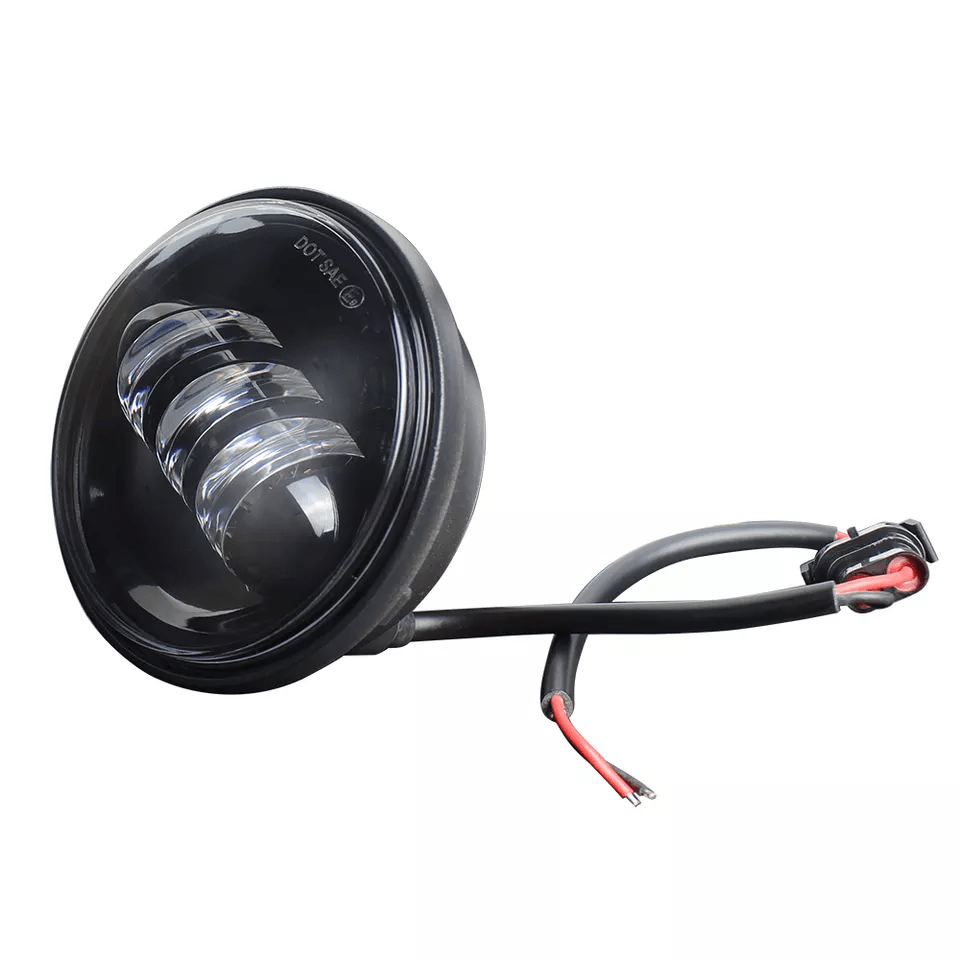

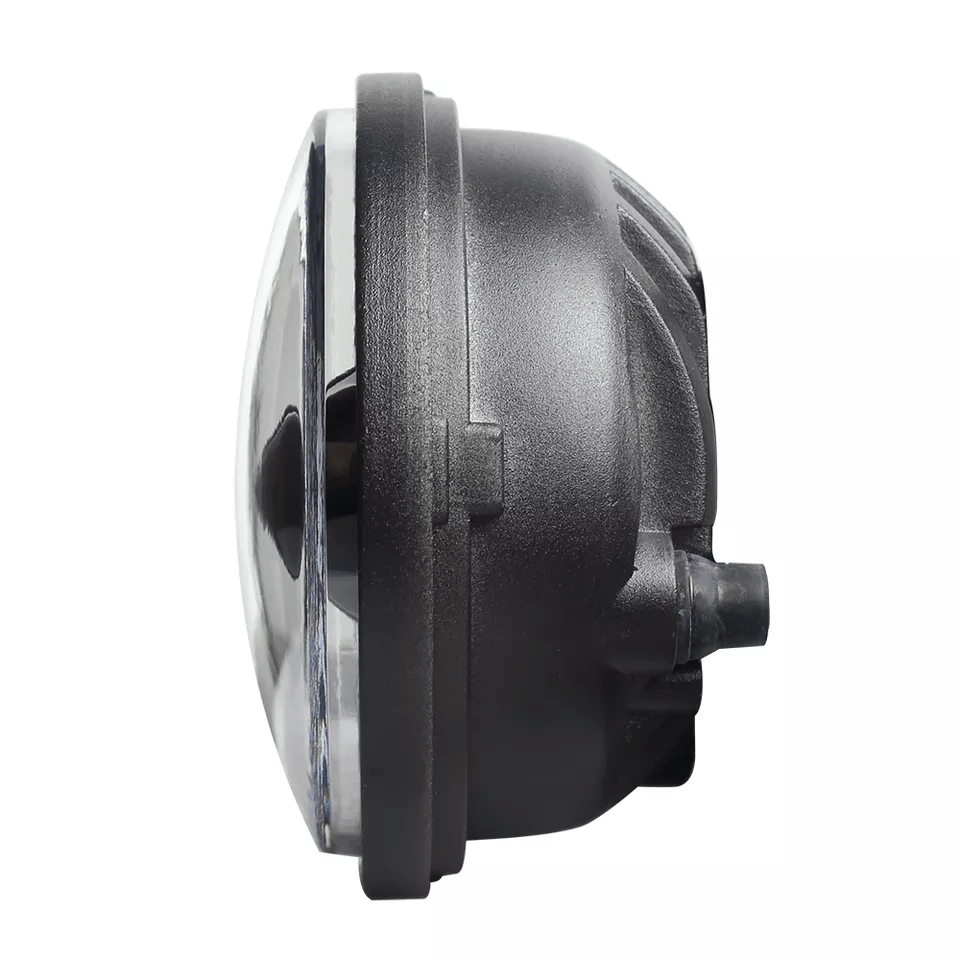

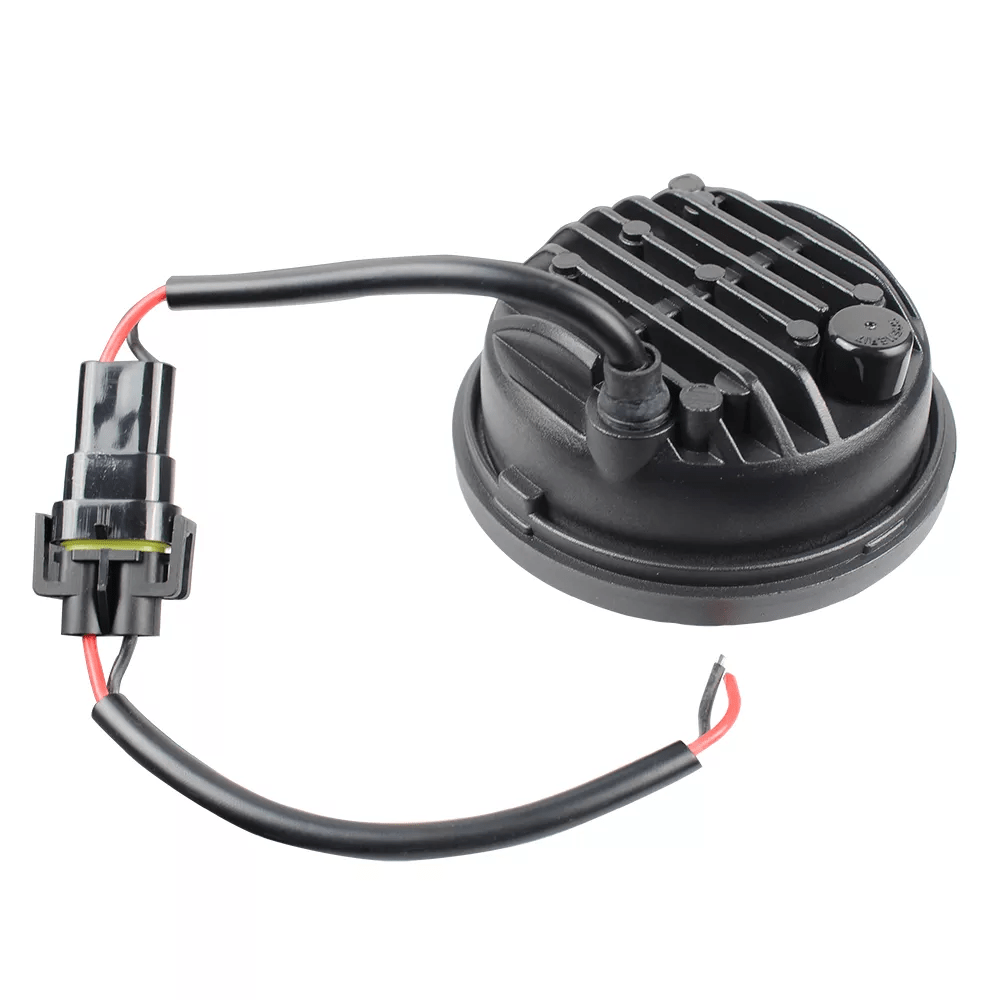

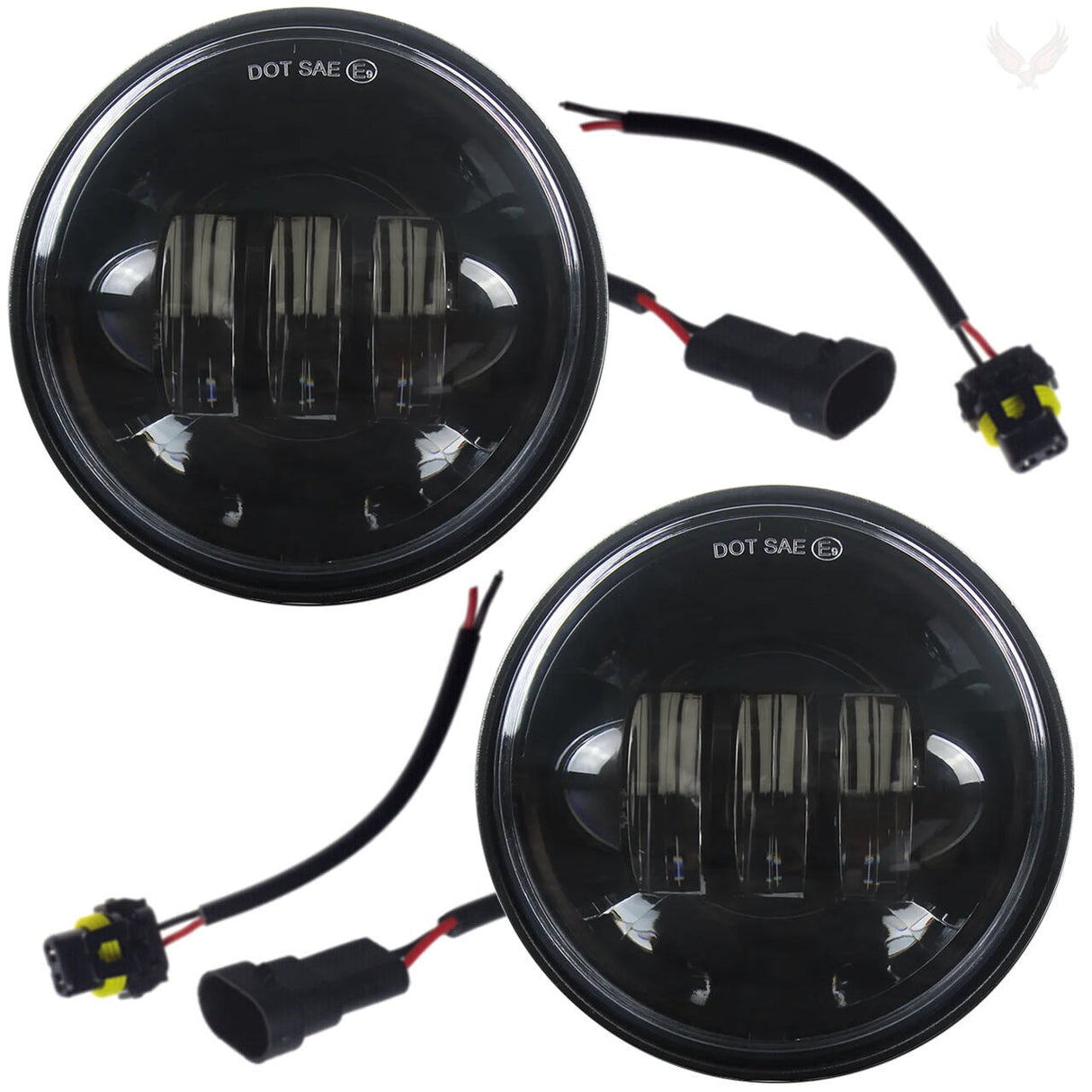

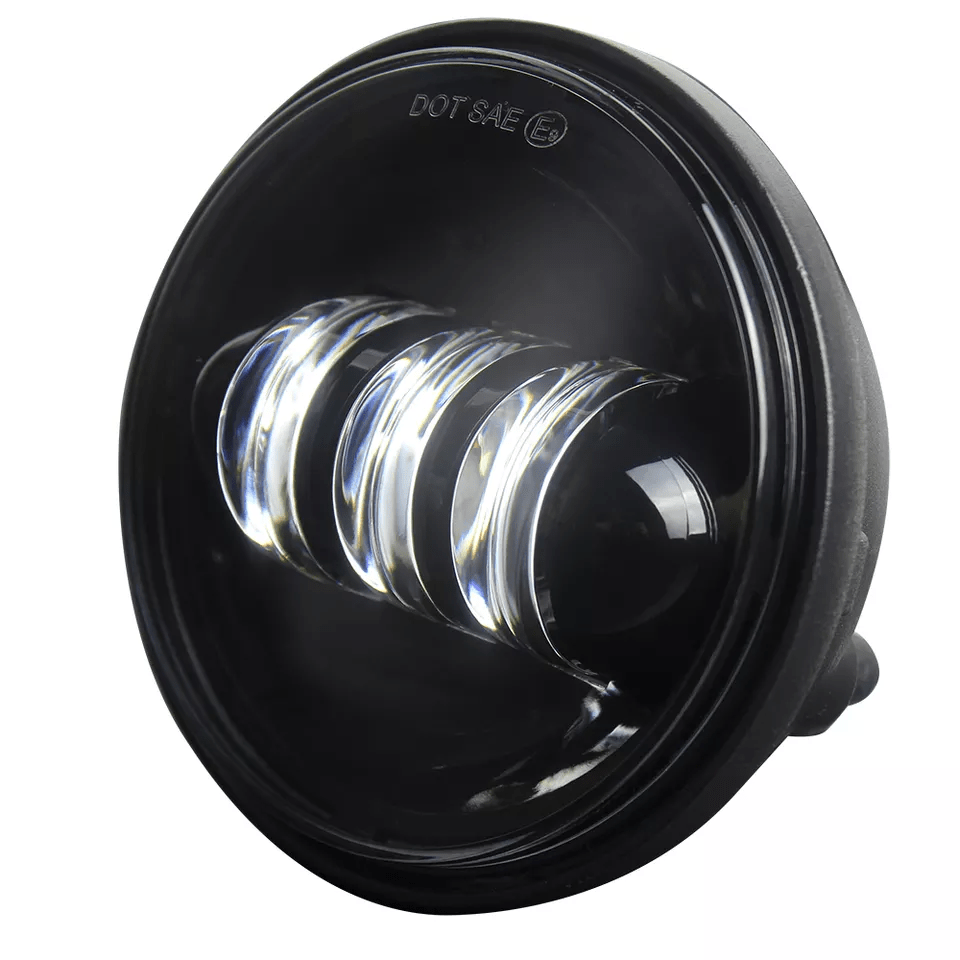

8700P Series Technical Specification:

Description 12V DOT/ECE RHT & LHT LED Fog Light with Black Inner Bezel
Height 100.33 (mm) / 3.95 (in)
Width 115.82 (mm) / 4.56 (in)
Depth 105.41 (mm) / 4.15 (in)
Shape Round
Outer Lens Material Hardcoated Polycarbonate
Outer Lens Color Clear
Housing Material Die-Cast Aluminum
Housing Color Black
Bezel Color Black / Chrome
Mounting Type Bumper Mount
Minimum Operating Temperature -40 (°C) / -40 (°F)
Maximum Operating Temperature 65 (°C) / 149 (°F)
Mating Connector Packard (#12059183)
Lumen Output 1100

Product Specifications
Part Number
Didn't find what you were looking for? Let us know! Suggestion Box

Share this Product


Ask a Question
  • Will this for a 2014 Harley ultra limited

    Yes, this is the correct kit for your bike.

  • What is the Lo-Beam and Hi-Beam bulb pattern?

    You can find pictures of the high beam and low beam pattern here.

  • Will this work on a 2018 Chieftain Dark Horse? Is it just plug and play?

    Yes, this headlight kit is a plug and play replacement for a 2018 Indian Chieftain Dark Horse.

  • I have a 2019 street glide special. I don't think I need the ring because there's a ring around the stock headlight but do I need the (897) harness?

    The 2019 Street Glide will need the 69200899 adapter harness. You will not need the adapter ring for your 2019 Street Glide.

  • My bike is 2011 Harley Davidson fat boy Do I need extra harness for this bike

    You will not need any extra harnesses for your bike. It is plug and play on the Fat Boy.

  • I have a 2014 softail deluxe which kit do i need

    This is the correct kit for your bike. You do not need the harness or the adapter ring.
