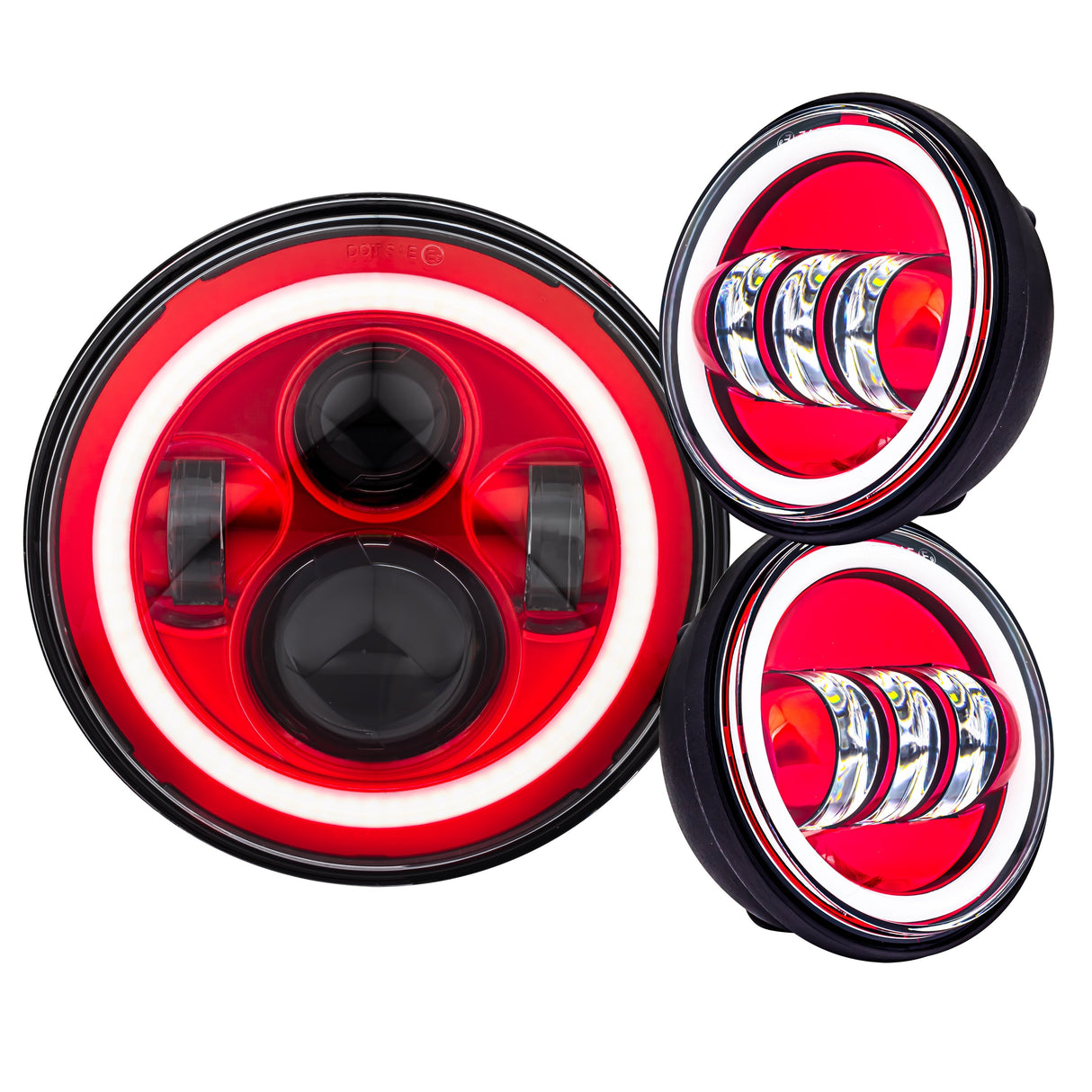

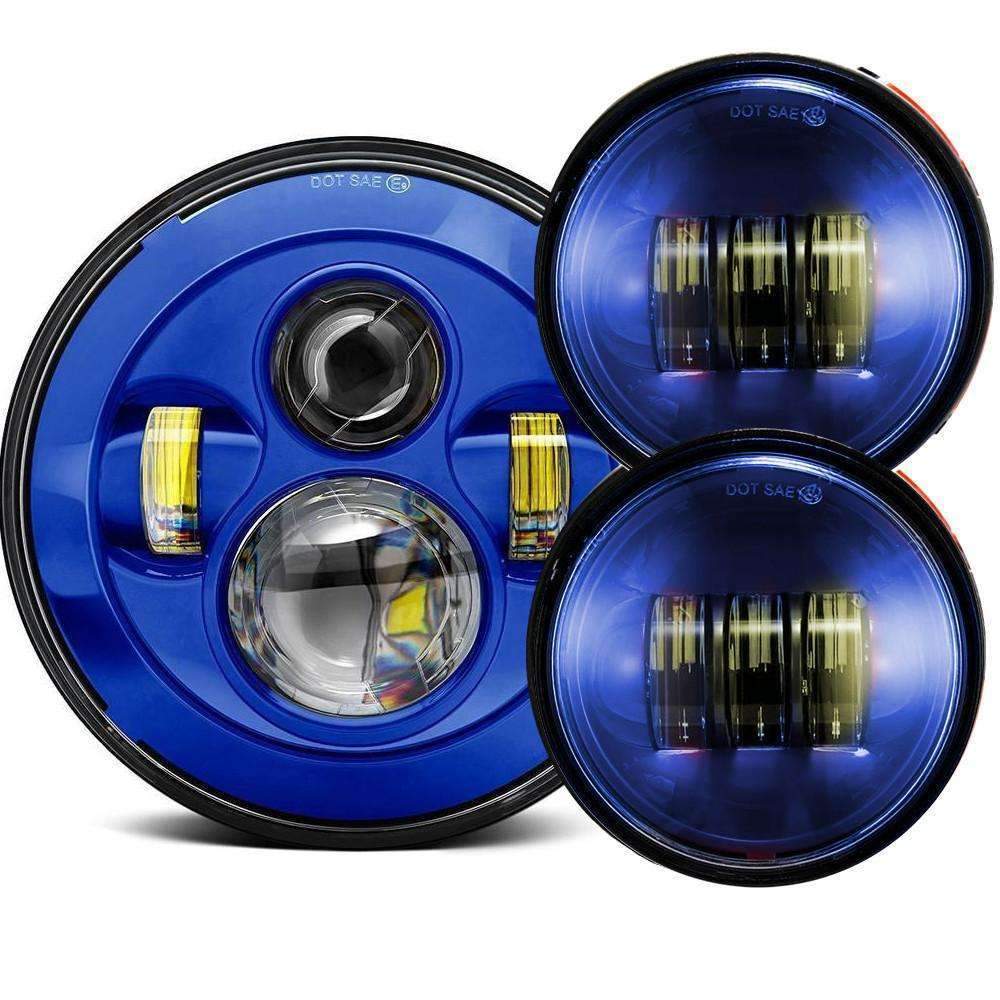

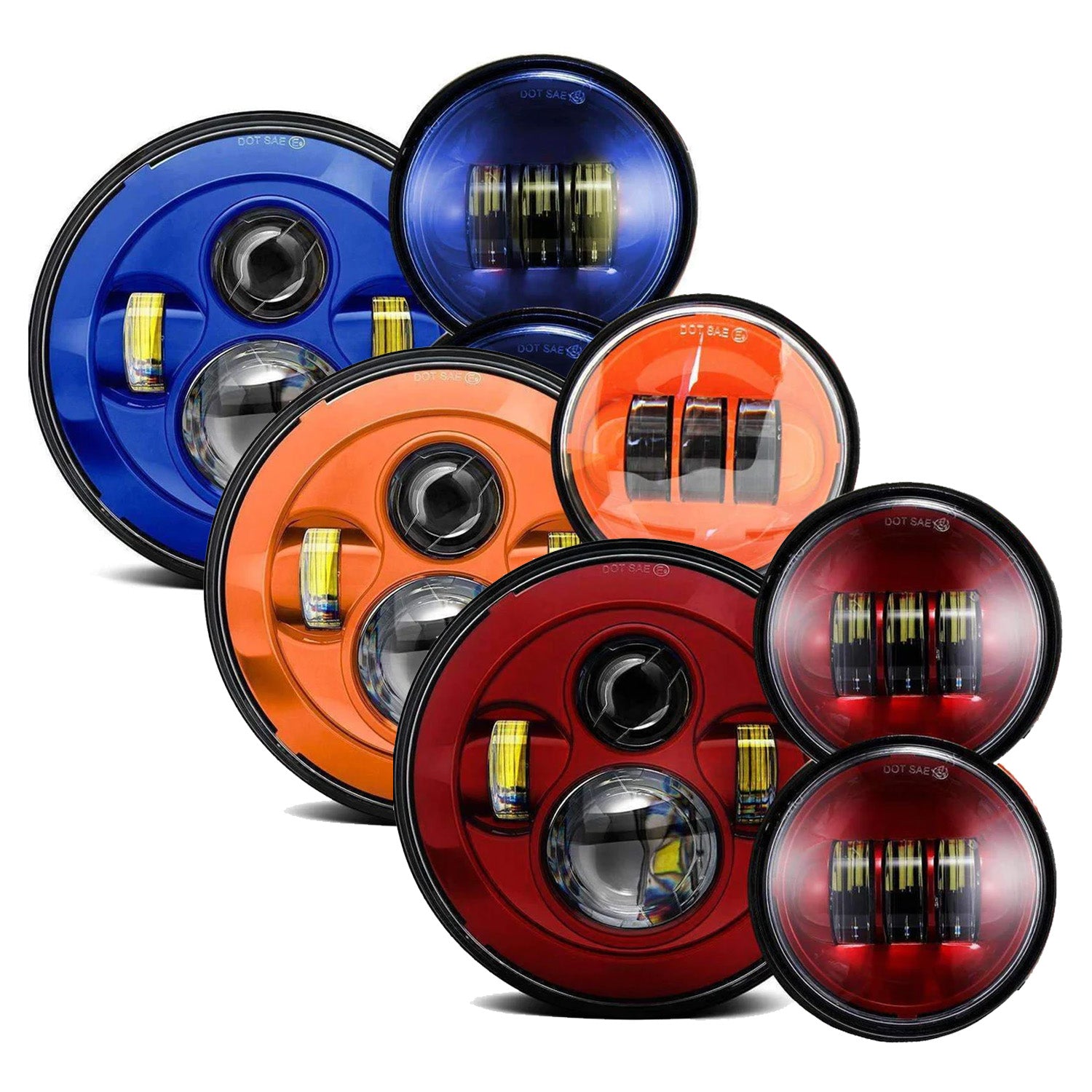

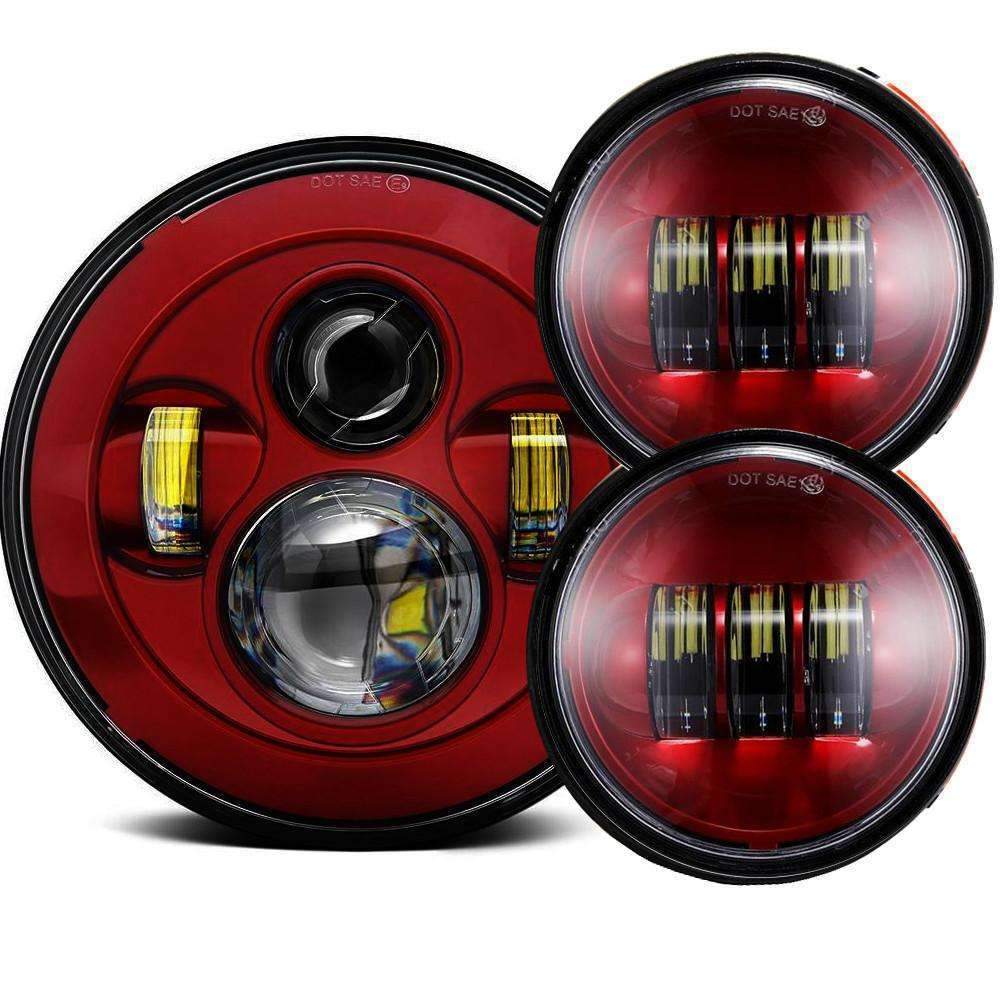

7” LED Headlight And Passing Lights - Eagle Lights 8700 Color Matched Harley 7" Round LED Headlight With Matching Passing Lamps For Harley Davidson Motorcycles*

Eagle Lights 8700 Color Matched Harley 7" Round LED Headlight with Matching Passing Lamps for Harley Davidson Motorcycles*

| Free Shipping | No Restocking Fees
List Price: $ 429.00
Price: $ 279.99 and FREE Shipping
Part Number:

Product Options:

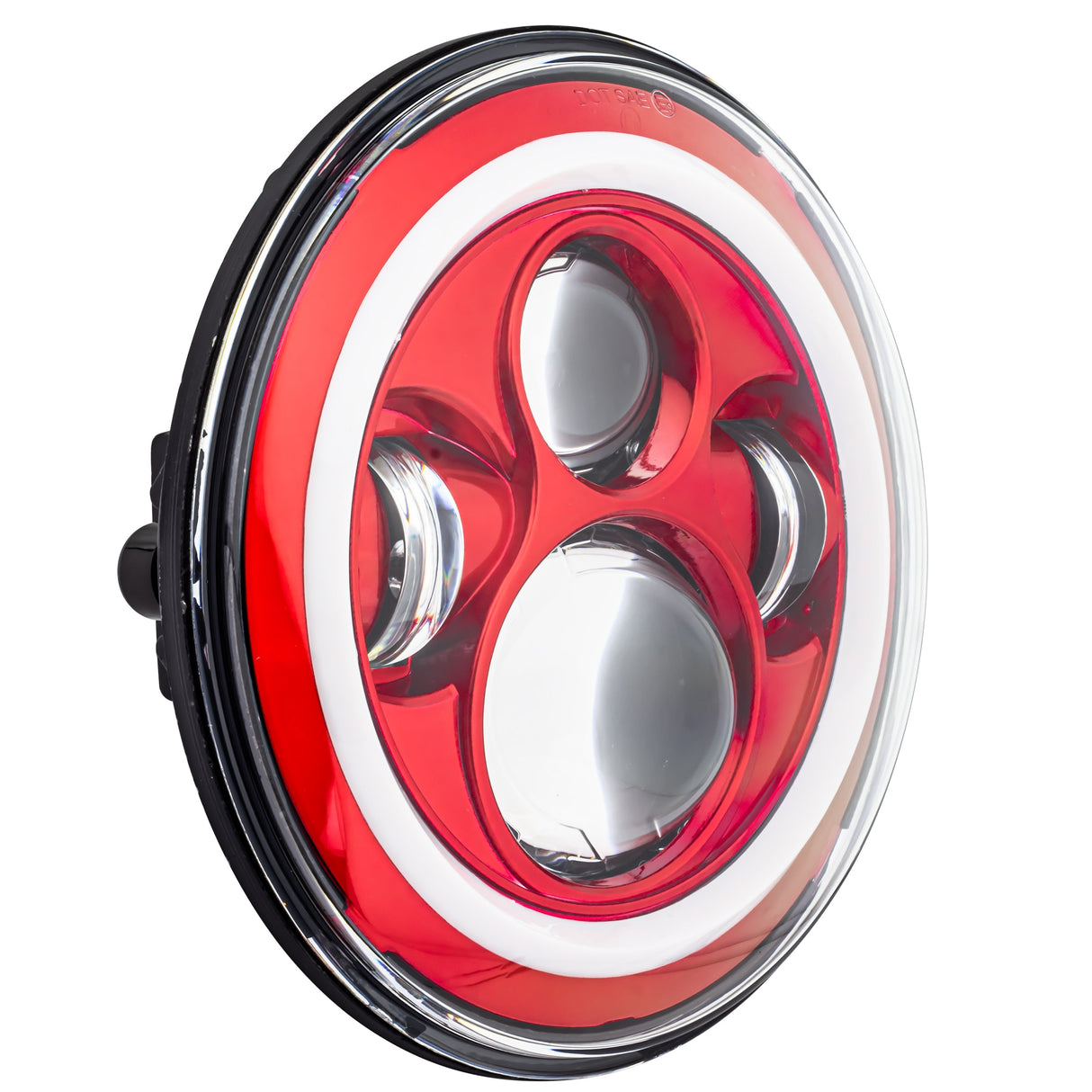

Eagle Lights 8700 LED projector headlight utilizes high intensity bright white LEDs with a color temperature over 6000K. This is a high performance LED headlight, designed to be a direct replacement for 7" headlights. It offers superior visibility, safety, and durability - making it the most advanced 7" LED headlight available. The light is a direct replacement for an H6024, 2D1, or any other 7" round light.

Production:
All color matched headlights take approximately 10 business days (2 weeks) to produce and ship unless otherwise noted.

Features:
  • Plug n' Play replacement for Jeeps and Harleys with 7" Round Headlights
  • Comes with standard 3 blade connection for easy installation
  • Increased safety - see over three times as far as stock headlights
  • DOT-compliant high/low beam function
  • Can be used to replace all 7" round headlights including H6024 and PAR56



Installation Accessories Guide:
Product Wiring Harness Note:
If your bike is 2014 or newer, you will need one of two adapter harnesses. If your headlight has one bulb in the main housing, you will need part number 69200897. If your headlight has two bulbs in the main housing, you will need part number 69200899.
Adapter Ring Product Note:
If your bike is 2013 and older, you will not need any of the adapter harnesses.  You will need the 8700R adapter ring if you have a 2013 and older Street Glide, Road King, or Electra Glide.

8700 Generation I Technical Specifications:

Description 12-24V DOT LED High & Low Beam Headlight with Black Inner Bezel
Height 176.53 (mm) / 6.95 (in)
Width 176.53 (mm) / 6.95 (in)
Depth 99.82 (mm) / 3.93 (in)
Shape Round
Outer Lens Material Polycarbonate Outer Lens
Color Clear
Housing Material Die-Cast Aluminum Housing
Color Gray
Bezel Color Blue / Green / Yellow / Red / Orange
Retrofits 2D1 "PAR56" or 7" Round Headlights
Minimum Operating Temperature -40 (°C) / -40 (°F)
Maximum Operating Temperature 65 (°C) / 149 (°F) Connector or Wiring
Product Weight 2.31 (lbs) / 1.05 (kgs)
Lumen Output: 1770 LM (High Beam), 1350 LM (Low Beam)


8700P Series Technical Specification:

Description 12V DOT/ECE RHT & LHT LED Fog Light with Black Inner Bezel
Height 100.33 (mm) / 3.95 (in)
Width 115.82 (mm) / 4.56 (in)
Depth 105.41 (mm) / 4.15 (in)
Shape Round
Outer Lens Material Hardcoated Polycarbonate
Outer Lens Color Clear
Housing Material Die-Cast Aluminum
Housing Color Black
Bezel Color
Blue / Green / Yellow / Red / Orange

Mounting Type Bumper Mount
Minimum Operating Temperature -40 (°C) / -40 (°F)
Maximum Operating Temperature 65 (°C) / 149 (°F)
Mating Connector Packard (#12059183)
Lumen Output 1100
