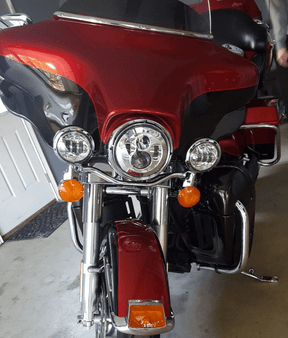

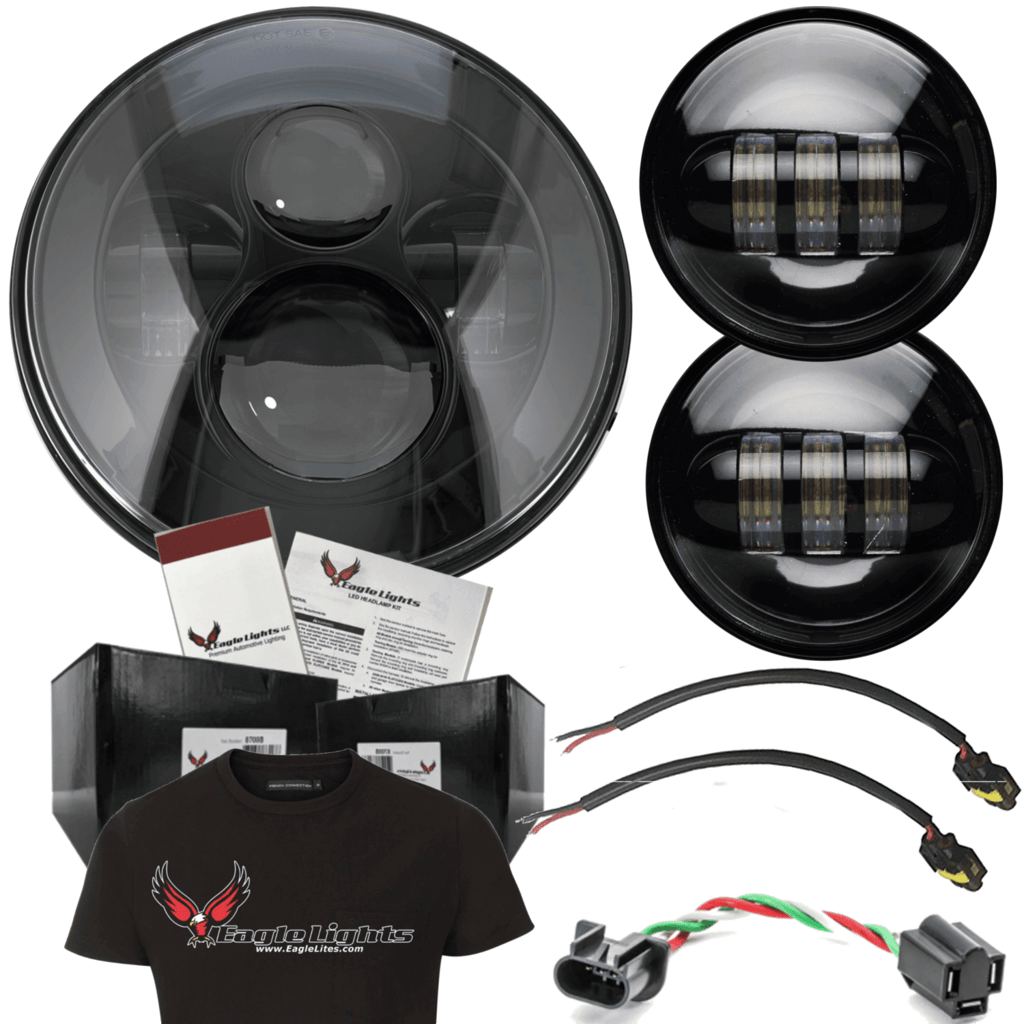

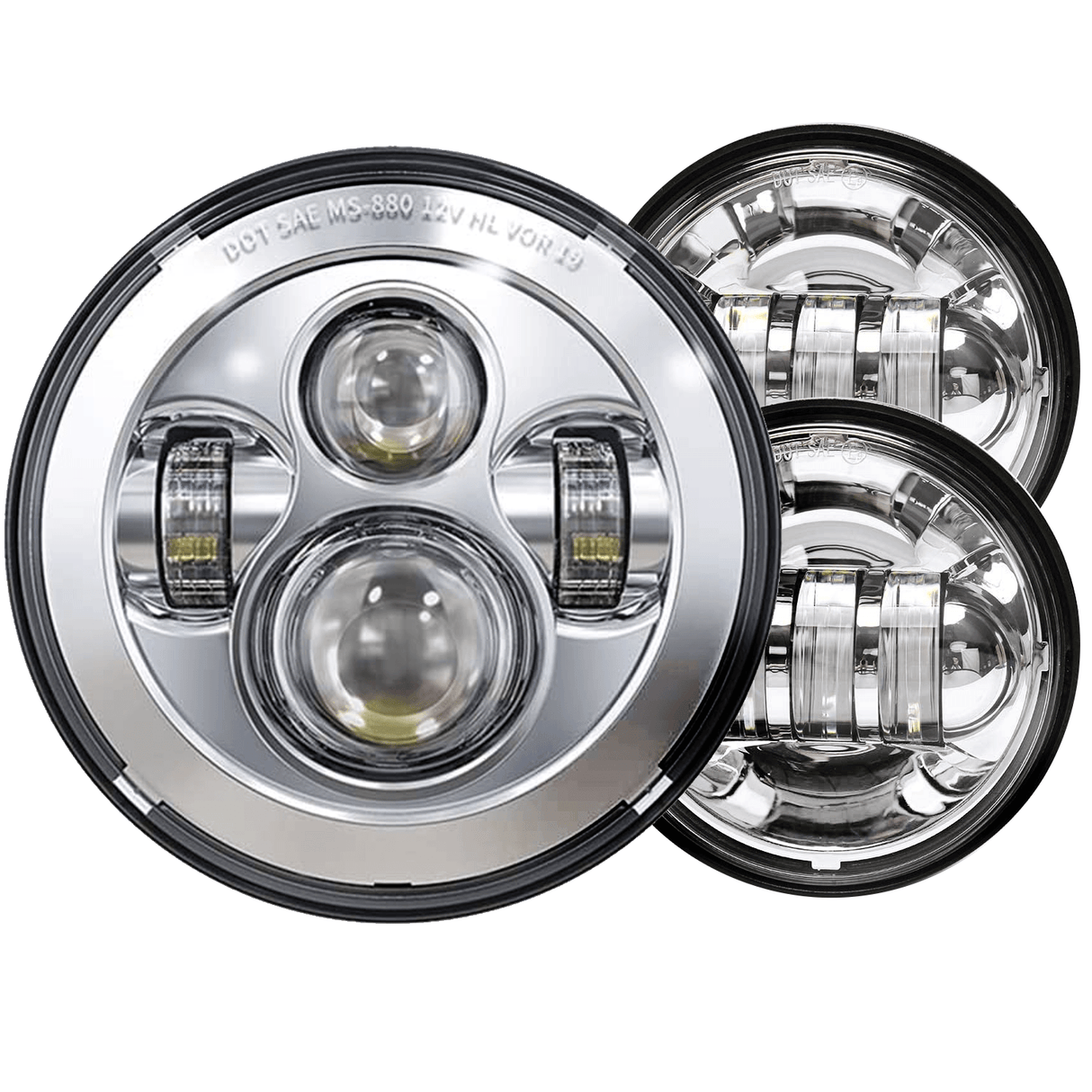

7” LED Headlight And Passing Lights - Eagle Lights Chrome 7" Round LED Headlight With Matching Chrome Passing Lamps For Street Glide, Electra Glide And Harley Davidson Models With Radios

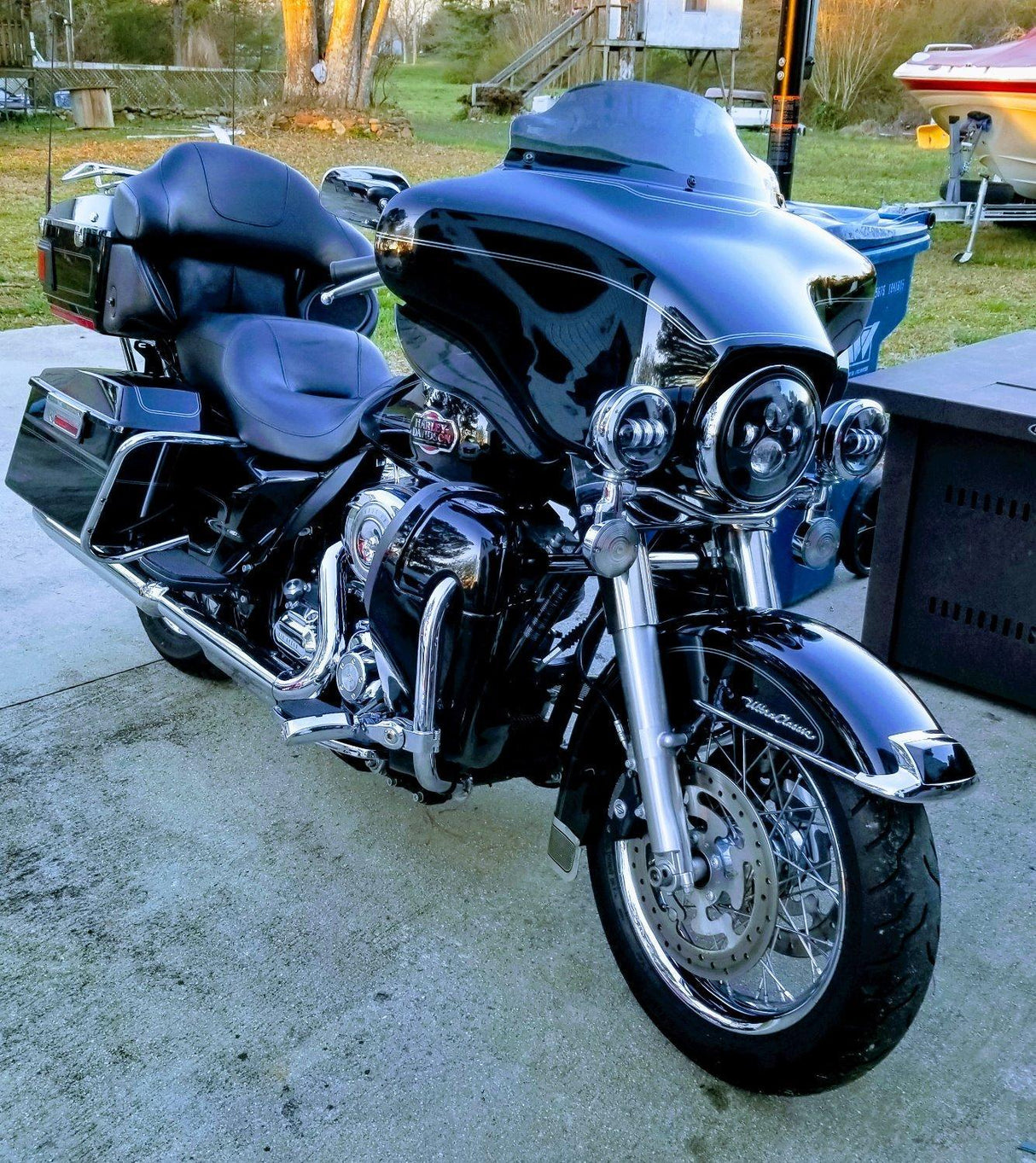

Eagle Lights 7" Round LED Headlight kit for Street Glide, Electra Glide and Harley Davidson Models with Radios

| Free Shipping | No Restocking Fees
List Price: $ 286.00
Price: $ 129.99 and FREE Shipping
Part Number:

Product Options:

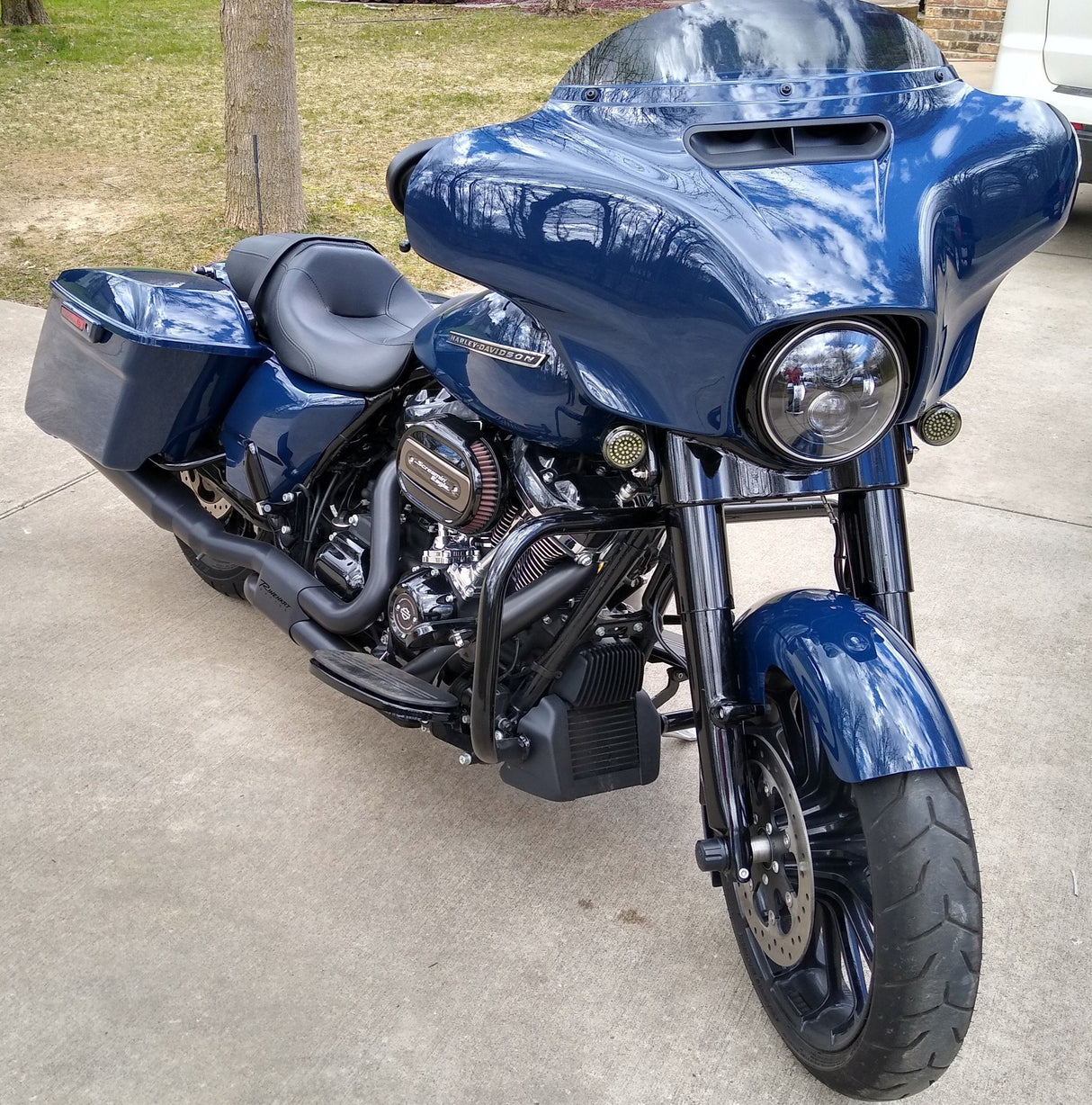

The Street Glide / Electra Glide kit is made specifically for your bike. This model has been specifically design to not interfere with your radio. It is the brightest kit we have available for your bike.

Installation Accessories Guide:

Product Wiring Harness Note:
If your bike is 2014 or newer, you will need one of two adapter harnesses. If your headlight has one bulb in the main housing, you will need part number 69200897 (897). If your headlight has two bulbs in the main housing, you will need part number 69200899 (899). Most of the time 2014 Street Glides will need the 897 harness. 2015 and newer Street Glides will need the 899 harness. For the Electra Glide, 2014 and new bikes will need the 897 harness. Please double check your bike to ensure you select the correct harness.

Adapter Ring Product Note:
If your Street Glide / Electra Glide is 2013 and older, you will not need any of the adapter harnesses.  You will need the 8700R adapter ring if you have a 2013 or older Street Glide / Electra Glide.

Features:

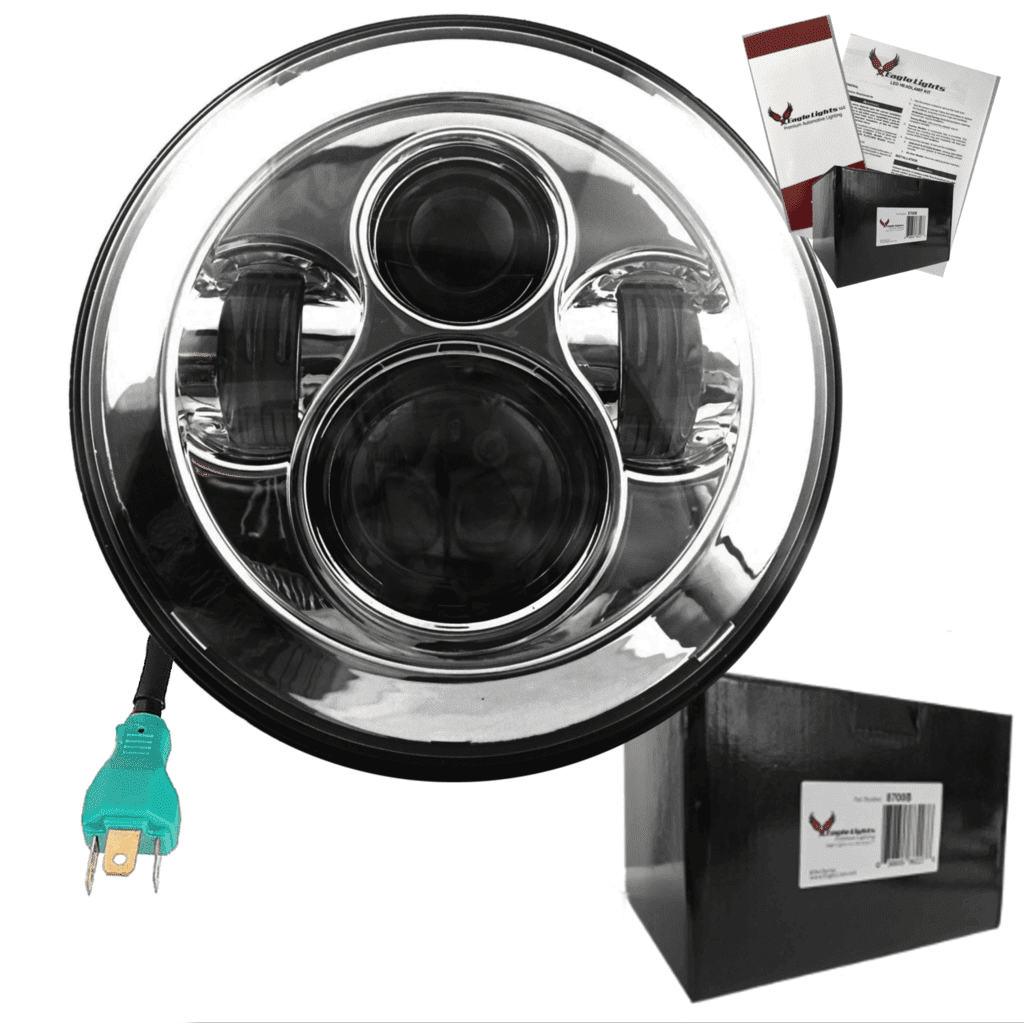

  • EAGLE LIGHTS QUALITY - The redesigned Eagle Lights 7" LED headlight made for Electra Glide and Street Glide models. The Eagle Lights LED headlight is made with a heat treated die-cast aluminum body and high quality polycarbonate plastic lens for extra durability. Powered by high output LEDs, the best and brightest 7" LED headlight available for your Street Glide or Electra Glide.

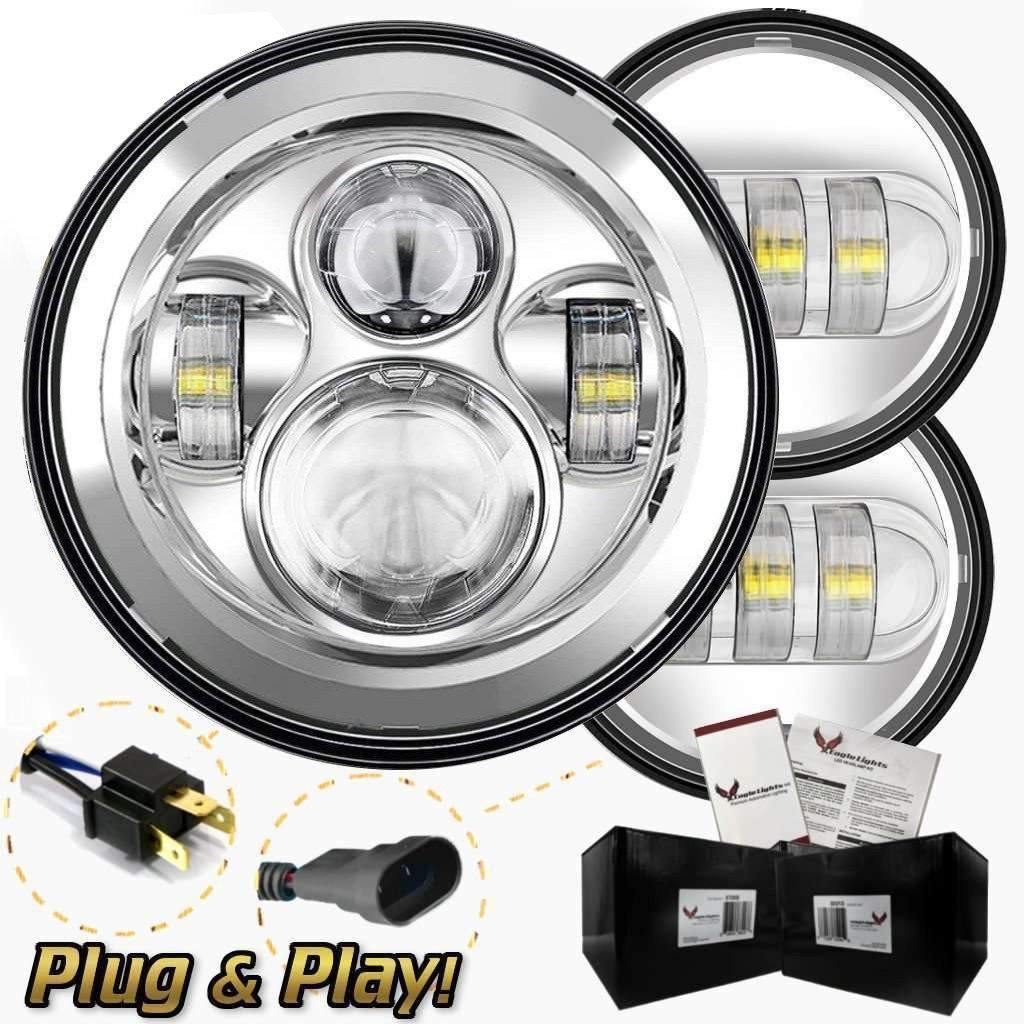

  • PLUG N' PLAY - The headlight and the auxiliary lights both come with the OEM connector that comes standard on many different Harley Davidsons and other bikes. Extra harnesses for other models are also included should they be needed. No splicing, no cutting. Just drop it in and go for a ride. (Older model Electra Glides will need to use the included adapters for the passing lights.)

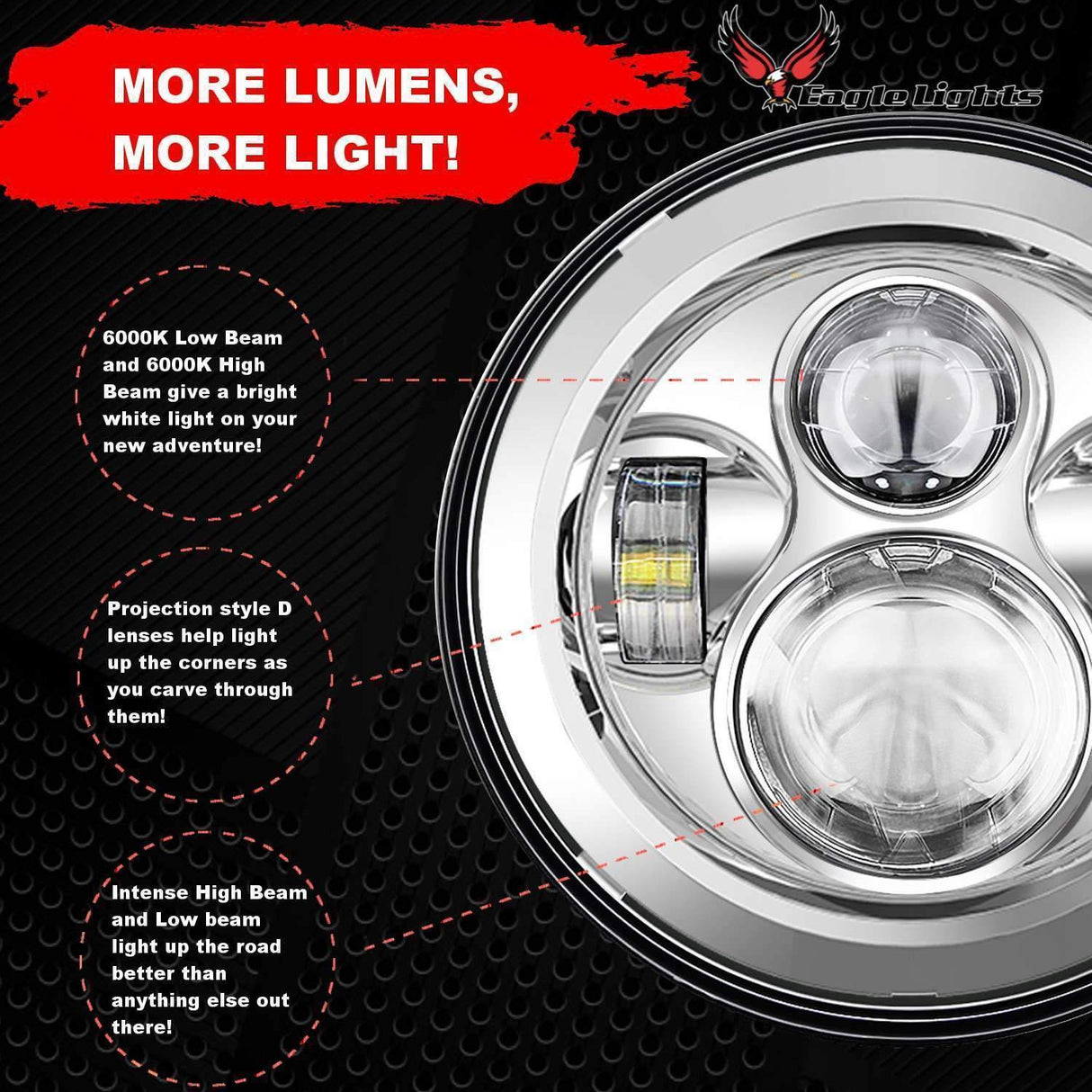

  • LOTS OF POWER, LOTS OF LIGHT - At over 1770 Lumens for the headlight and 1200 Lumens for each auxiliary light, there is nowhere you can't go. The headlight and auxiliary lights come with a wide angle of projection and a color temperature of over 6000K, the road will be bright, easily visible and safe.
  • EAGLE LIGHTS LIFETIME WARRANTY - Our LED headlights are designed to outlast your bike! But should something go wrong, you are covered by the Eagle Lights Lifetime Manufacturer Warranty. The best warranty in the business! No hassle returns and no hassle warranty replacement.



8700 Technical Specifications:

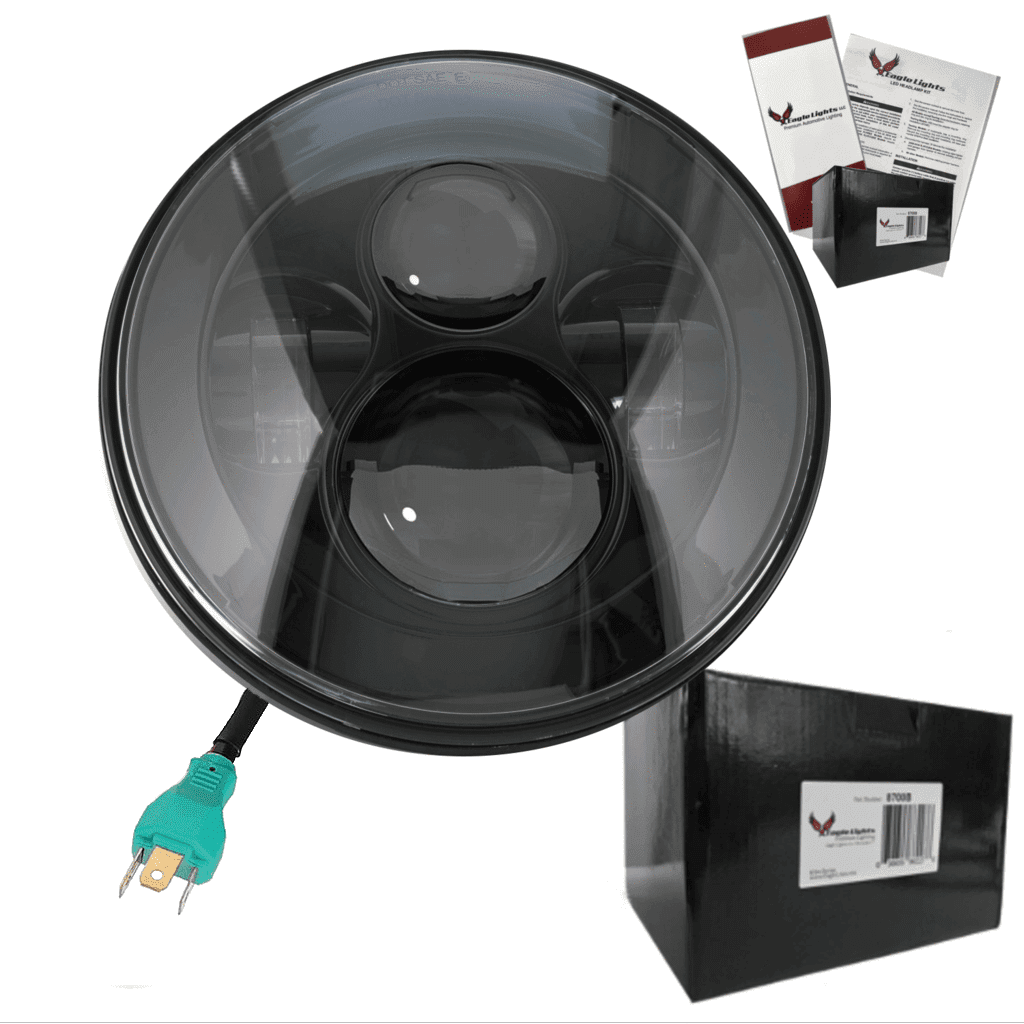

Description 12-24V DOT LED High & Low Beam Headlight with Black Inner Bezel
Height 176.53 (mm) / 6.95 (in)
Width 176.53 (mm) / 6.95 (in)
Depth 99.82 (mm) / 3.93 (in)
Shape Round
Outer Lens Material Polycarbonate Outer Lens
Color Clear
Housing Material Die-Cast Aluminum Housing
ColorGray
Bezel Color Black / Chrome
Retrofits 2D1 "PAR56" or 7" Round Headlights
Minimum Operating Temperature -40 (°C) / -40 (°F)
Maximum Operating Temperature 65 (°C) / 149 (°F) Connector or Wiring
Product Weight 2.31 (lbs) / 1.05 (kgs)
Lumen Output: 1770 LM (High Beam), 1350 LM (Low Beam)


8700P Series Technical Specification:

Description 12V DOT/ECE RHT & LHT LED Fog Light with Black Inner Bezel
Height 100.33 (mm) / 3.95 (in)
Width 115.82 (mm) / 4.56 (in)
Depth 105.41 (mm) / 4.15 (in)
Shape Round
Outer Lens Material Hardcoated Polycarbonate
Outer Lens Color Clear
Housing Material Die-Cast Aluminum
Housing Color Black
Bezel Color Black / Chrome
Mounting Type Bumper Mount
Minimum Operating Temperature -40 (°C) / -40 (°F)
Maximum Operating Temperature 65 (°C) / 149 (°F)
Mating Connector Packard (#12059183)
Lumen Output 1100
